Types of Raised Floor Systems: Which One Is Best for Your Project?

Introduction: Why You Should Care About What’s Under Your Feet

Have you ever walked into a massive server room and felt the ground give just a little beneath you? Or noticed those weird square tiles in an airport control tower? That isn't shoddy construction. That is a raised floor system working its magic.

Think of it as the Swiss Army knife of building infrastructure. It hides ugly cables, cools down hot machines, and lets you rearrange an entire office without hiring an electrician to jackhammer the concrete. But here is the million-dollar question: Which type of raised floor system is actually right for your project?

Choosing the wrong type is just like showing up to a wedding in hiking boots. It’s technically doable, but you’ll feel awkward the whole time — and everyone around you will notice it too.With so many choices available: steel, concrete, aluminum, wood-core, low-profile and high-profile designs, it’s easy to feel overwhelmed.Dawn Floor here glade to help you sort it out. By the time you finish reading this guide, you’ll be able to pick the perfect flooring solution to turn your construction troubles into a hassle-free project.

The Basics: How Raised Floors Actually Work

Before we dive into the different types, let us keep it simple. Imagine building a second floor that sits a few inches (or a few feet) above the real concrete slab. Now imagine that second floor is made of removable squares.

That hidden gap underneath is called a "plenum." In traditional offices, you bury cables in the walls. In a raised floor, you just pop a tile, drop the cable in, and close it. It is like having a secret basement under every desk.

The Pedestal (The Legs)

The pedestal is an adjustable metal stand that screws directly into the concrete slab. It is the leg of the system. You can twist it up or down to make sure the floor is perfectly level, even if the original slab is crooked.

The Stringer (The Skeleton)

Stringers are optional horizontal metal bars that clip onto the pedestals. They connect everything together into a rigid grid. Think of it like the skeleton that holds the body upright.

The Panel (The Floor You Walk On)

This is the actual tile. It comes in steel, aluminum, concrete, or wood. The material of this panel is what determines the "type" of raised floor we are about to discuss.

The Major Categories: Stringer vs. Stringer-Less

Here is where most people get tripped up. Do you need a connected grid or free-standing legs?

Stringer systems are rock solid. They are your best friend if you live in an earthquake zone or if you plan to roll 2,000-pound server racks across the floor. The downside? Those metal bars block airflow underneath, and they take longer to install.

Stringer-less systems are the opposite. The pedestals stand alone, and the tiles lock directly into the heads using gravity or a twist-lock mechanism. They are cheaper, faster to install, and allow for much better airflow. But they can feel a little bouncy under heavy feet. I recommend stringer-less for offices and stringers for heavy industrial use.

Height Matters: Low Profile vs. High Profile

How much space do you really need under the floor?

Low profile systems sit between 2 to 6 inches off the slab. You cannot crawl under there. You just slide cables through like a ninja. This is perfect for network cables and thin power cords in an office.

High profile systems go from 12 inches all the way up to 4 feet. You can literally walk underneath these floors. Data centers love this because they need massive air conditioning ducts to push cold air through the plenum. Just remember, higher profiles mean losing headroom and spending more money.

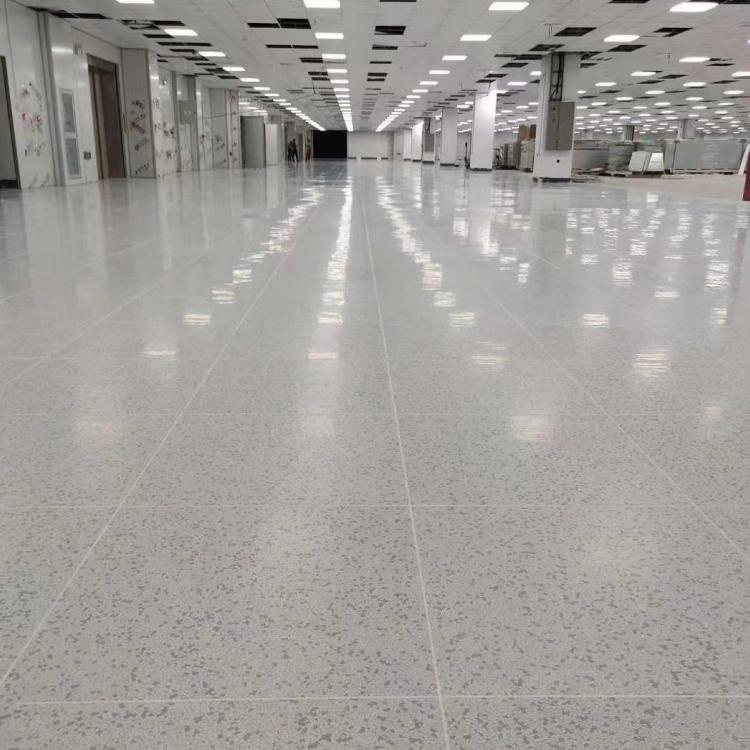

Type A: Steel Encapsulated Panels (The Workhorse)

If you walk into a typical corporate data center, you are standing on steel. These are two thin sheets of galvanized steel with a lightweight cement or hollow center.

Why do people love them? Strength. Steel does not crack under pressure. You can roll a fully loaded pallet jack over it and it just shrugs. It is also fire-resistant and relatively cheap.

The downside? Noise. Drop a wrench on a steel floor and everyone in the room will turn around. They also rust if you spill coffee and leave it, and they conduct electricity like crazy, so you better have good grounding.

Type B: Calcium Sulfate Panels (The Silent Giant)

Have you ever walked on a raised floor that felt exactly like solid concrete? That is calcium sulfate. These panels are made from a mixture of gypsum and fibers, then sealed with a thin metal skin.

They are heavy. I mean really heavy. But that mass gives them two superpowers. For starters, they are dead quiet. No echo, no hollow drum sound. Also, they do not vibrate, which is crucial for sensitive lab equipment.

The bad news? Weight. If you are on an upper floor, your building might groan under the load. Another thing to watch for: if a pipe bursts, the edges swell up like a sponge. Once that happens, the tile is ruined.

Type C: Aluminum Panels (The Lightweight Specialist)

Aluminum is the carbon fiber of the raised floor world. It is expensive, light, and does not rust. Ever. You typically find these in submarines, naval vessels, or broadcast trucks—anywhere where saving pounds matters.

Aluminum also dissipates heat better than steel, which is great for hot server rooms. But there is a catch. Aluminum is soft. Roll a heavy pallet jack over it and you might leave a permanent dent. For most people, steel is the smarter play.

Type D: Woodcore Panels (The Budget Friendly Option)

Yes, plywood. Before steel became cheap, manufacturers took high-density particle board and laminated it with a conductive vinyl top.

Woodcore is warm underfoot and cheap. You still see it in older office buildings and home theaters. But here is the hard truth: wood swells with humidity, rots if the sprinkler system leaks, and burns. Most building codes restrict it to low-stakes areas. Use this only if you are on a shoestring budget.

Type E: Glass Filled Hybrids (The High Tech Choice)

This one is rare. Manufacturers weave glass fibers with resin to create a panel that is non-conductive. Some are even transparent.

You do not need these unless you are building a Faraday cage or an MRI room where metal is forbidden. For the rest of us, this is just fun trivia.

Airflow: Perforated vs. Solid Tiles

Not all tiles are solid. Perforated tiles have holes in them. You place these directly in front of server racks.

Here is the trick. An AC unit pushes cold air into the plenum. That cold air rises up through the holes and hits the front of your electronics. This is called underfloor air distribution. If you forget perforated tiles, your expensive gear will cook like a potato in an oven. Typically, you need about 15-20% perforated tiles in a data center.

Best Uses: Which Floor for Which Room?

Let us stop talking theory and get practical.

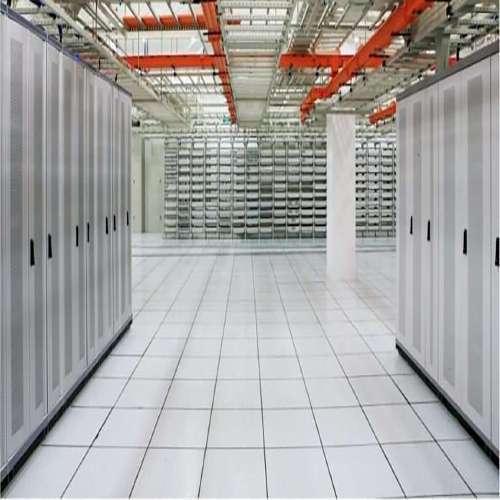

Data Centers & Server Rooms

The go-to choice here is steel encapsulated. Use a high profile for airflow and a stringer system for heavy racks. Stay away from wood-core. You need fire safety and rolling load strength.

Office Lobbies & Corporate Spaces

For offices, reach for calcium sulfate composite. Use a low profile stringer-less system. Finish it with wood or stone veneer. It feels solid under high heels and keeps the room quiet. Plus, you can hide charging stations underneath.

Clean Rooms & Laboratories

For clean room applications, opt for sealed aluminum and stainless steel pedestals. These spaces require a dust-free environment and compatibility with strong chemical cleaners. Wood-core pedestals should be avoided entirely in such areas, as wood harbors bacteria easily.

The Money Talk: Cost Breakdown

Let us talk numbers. These are rough material costs per square foot.

Woodcore runs $5 to $8. Steel encapsulated runs $10 to $18. Calcium sulfate runs $15 to $25. Aluminum runs $30 to $60+.

But do not let the sticker shock fool you. Cheap wood might last 8 years. Steel lasts 30. Aluminum lasts 50. Always think about the total cost of ownership. A cheap floor that swells after one leak is not cheap at all.

Installation: DIY or Call the Pros?

Can you install a raised floor yourself? Only if your project is tiny, like a home office under 200 square feet.

For anything larger, hire a certified installer. Why? Laser levels. The floor must be perfectly flat. A 1/8-inch deviation over 10 feet will send your office chair rolling downhill. Also, cutting steel tiles requires specialized shears. One wrong cut ruins a $50 tile. Do not be a hero.

Long Term Maintenance: Rust, Squeaks, and Swelling

No floor lasts forever without a little love.

Steel panels rust in humid coastal cities. Check them every year for orange spots. Calcium sulfate panels swell at the edges if they get wet. You will feel a "lip" where two tiles meet. Sand it down or replace it.

Aluminum is maintenance-free but gets "galvanic corrosion" if it touches raw steel. Use a plastic isolator pad. Squeaks usually mean a loose pedestal. Just twist it tight. Keep a suction cup lifter in your janitor closet.

Conclusion: Matching the Floor to Your Project

Let us bring this home. There is no single "best" raised floor system. There is only the best system for your specific situation.

Here is your cheat sheet. For a data center, grab steel encapsulated with a high profile. For an office lobby, grab calcium sulfate with a low profile. For a wet lab, grab aluminum. For a temporary budget build, woodcore is fine.

Do not skimp on the pedestal grid. The prettiest tile in the world is useless if it wobbles. And always order 5-10% extra tiles as spares. Manufacturers change colors every few years, and you will thank me when you break one moving a filing cabinet.

Your floor is not just something you walk on. It is your cable manager, your cooling system, and your future flexibility all rolled into one. Choose wisely, and you will thank yourself five years from now. Choose poorly, and you will be ripping up tiles while cursing under your breath. Now go build something smart.
