Woodcore Raised Floor Panels: Pros and Cons

Introduction: Why Everyone’s Talking About Woodcore
Let’s be honest. If you’ve been in a busy data center, a trading floor, or a high-tech museum, you’ve probably stood on a raised access floor. But not all raised floors are the same. There are steel panels, heavy calcium sulfate, and the one everyone argues about—woodcore raised floors.

So why all the fuss?
Think of a sandwich. The top and bottom are steel. The filling—the core—is where the good or bad happens. Woodcore panels use particle board or plywood. They promise concrete-like strength at a light weight. Sounds great, right? Not so fast. Like a great friend who fails when water’s around, woodcore has its problems.

In this guide, we’ll break down the real facts. By the end, you’ll know if woodcore is your best choice or a costly one.

What Exactly Is a Woodcore Raised Floor Panel?

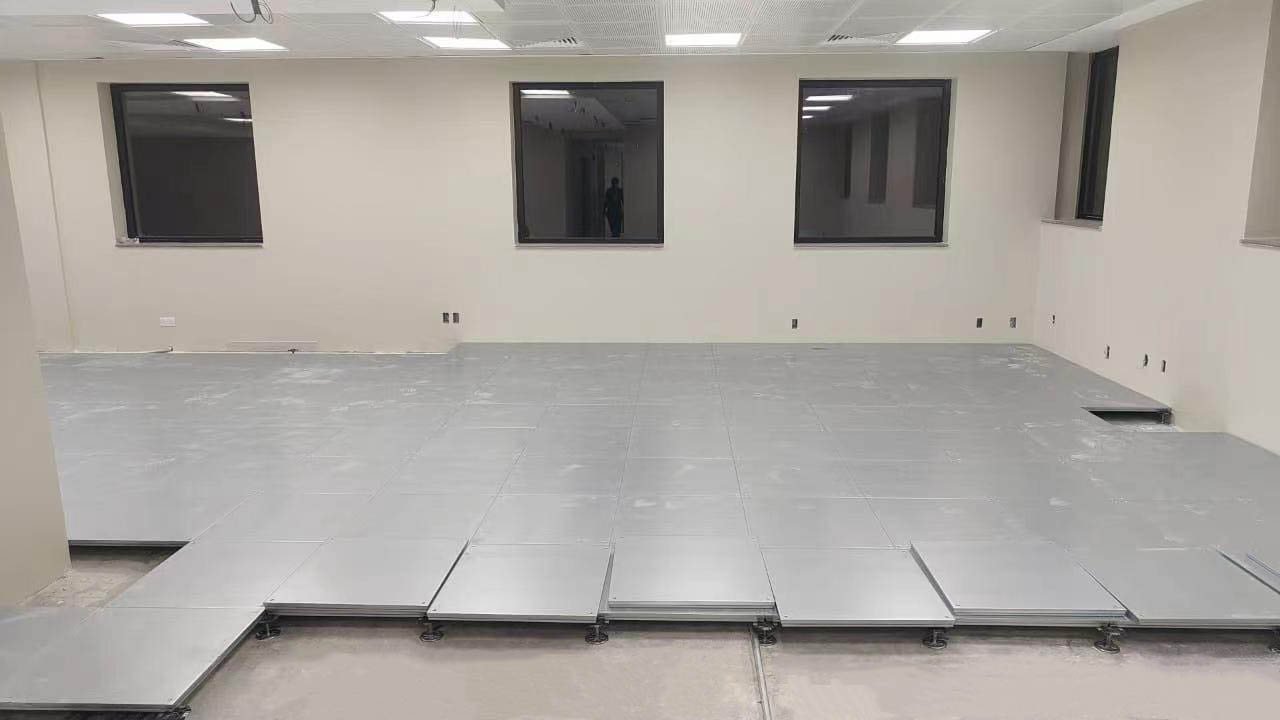

Let’s skip the fancy terms. A raised floor system uses small adjustable metal legs to lift panels off the concrete floor. This creates space underneath for cables, pipes, and air.

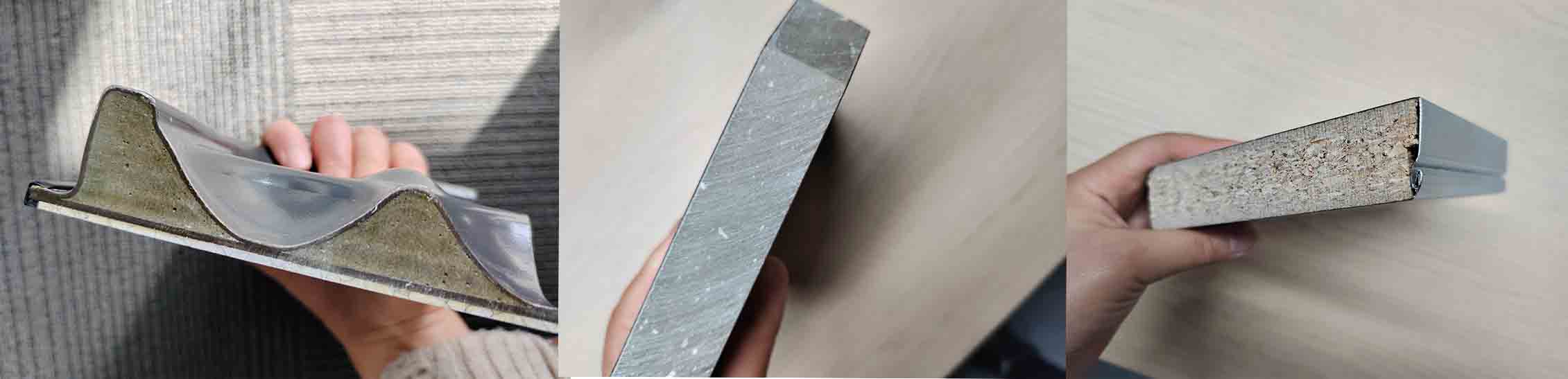

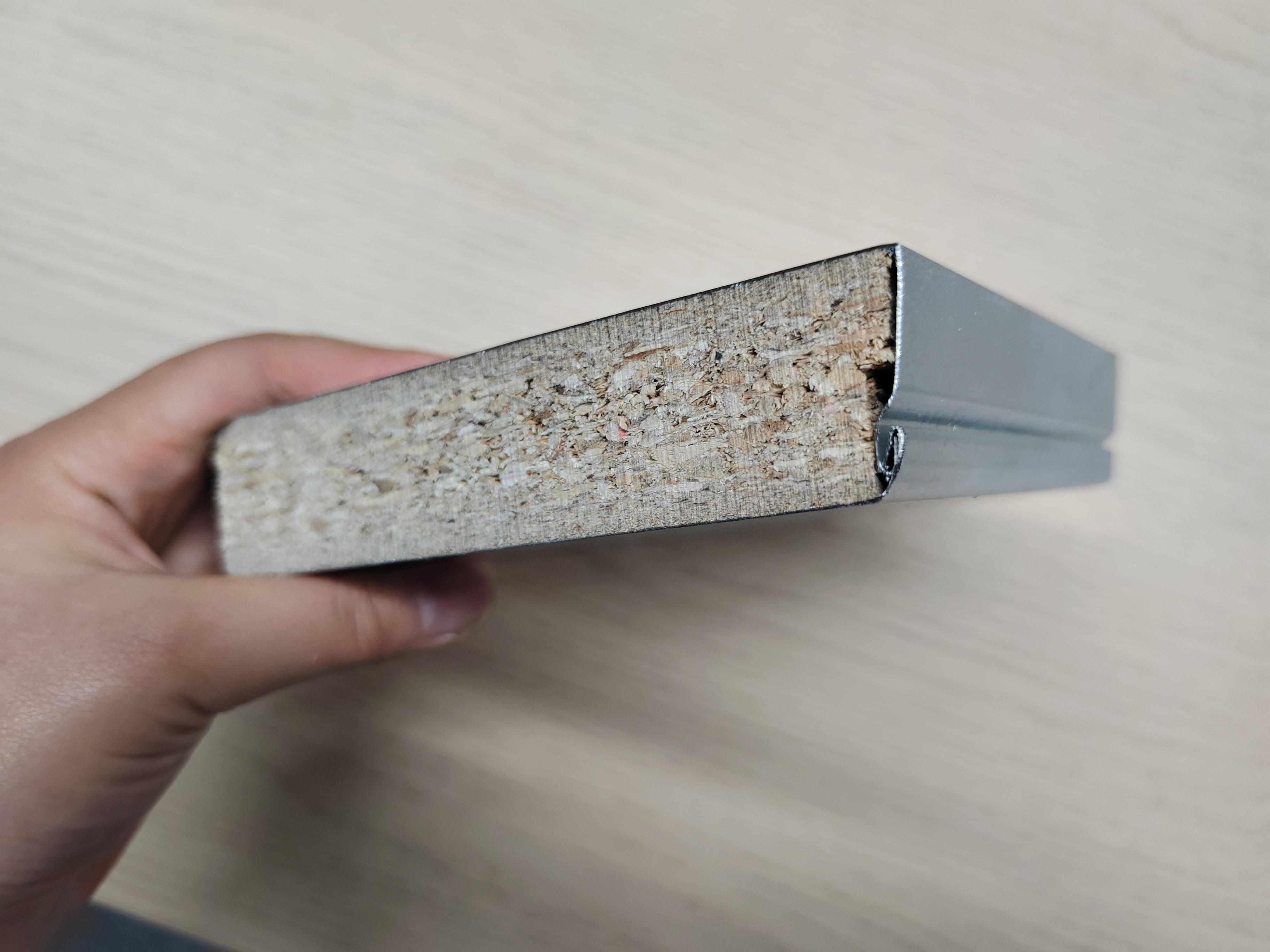

What’s Inside a Panel: Core vs. Surface
“Woodcore” simply means the inside of the panel. Here’s what it’s made of:

• The Core: High-density particle board or plywood, treated with resin.

• The Skin: A thin layer of steel on top (and sometimes bottom).

• The Finish: Laminate, vinyl tile, or HPL on the surface.

Think of it as a steel shell around a wood center. It’s not just wood—it’s a mixed material.

Where Are These Floors Used?
You won’t see them in wet places like car washes. But they are common in:

• Offices: To hide cables under desks.

• Data Centers: To help cool equipment with airflow.

• Control Rooms: Where heavy gear needs flexible setup.

• Stores: For easily moving power outlets.

The Good Side: Why People Like Woodcore Panels

Let’s start with the good stuff. Here’s why architects actually like using these.

1. Very Strong but Still Light

Try lifting a heavy concrete tile. Not fun, right? Woodcore panels are much lighter. A standard 600x600mm woodcore panel weighs about half of a calcium sulfate one. This means:

• Less strain on the people installing it.

• Lower shipping costs.

• Less weight stress on the building floor.

You get strong flooring without the heavy weight.

2. Saves Money Without Looking Cheap

Now, let’s talk price. Woodcore is right in the middle of the budget. All-steel and calcium sulfate panels cost more. Woodcore is usually 10-20% cheaper upfront.

You save money, but your floor still sounds solid, not hollow. For a 10,000 sq ft office, that’s real savings left over.

3. Better at Reducing Noise (The “Thud” Test)

Ever walked on a cheap raised floor? It clicks, clacks, and echoes. Woodcore is different. Wood naturally softens vibration and absorbs sound. When you drop a tool or roll a heavy server rack, you hear a quiet thud instead of a loud clang.

How the Dense Core Blocks Sound

The resin-treated wood fibers break up sound waves. If you want a quieter office, woodcore helps a lot.

4. Easy to Cut and Change On-Site

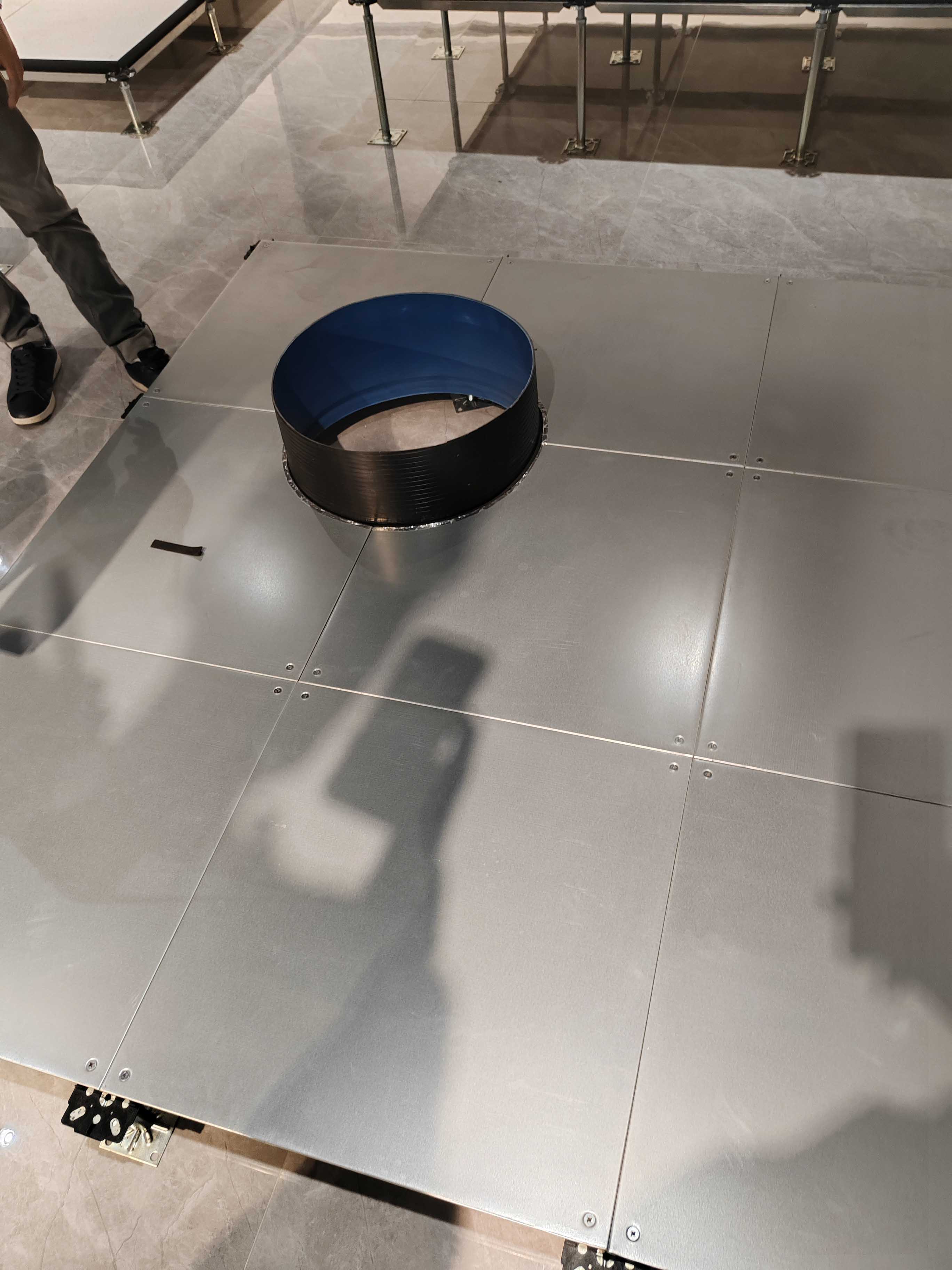

Cutting panels on-site is usually a headache. With concrete-filled panels, you need a special diamond saw for a simple pipe cutout. With woodcore? Just use a regular circular saw. Quick and easy.

This saves hours of work. You can cut around columns and make custom shapes without sending dust everywhere.

5. Better for the Environment

Calling woodcore “green” might sound like marketing talk, but it’s true. Most woodcore uses recycled wood fibers (sawdust and wood chips from other mills). Also, wood stores carbon, while steel takes a lot of energy to make. If your project needs LEED points, woodcore can help a little.

The Bad Side: What’s Wrong with Woodcore

Now let’s look at the other side. If you ignore these problems, you will regret it later.

1. The Big Problem: Water

This is the main issue. The one everyone worries about.

Wood + Water = Trouble. Always. Even with a steel top and bottom, water finds a way. If there’s a flood, a leaking pipe, or just high humidity, moisture can get in through the edges or cutouts.

What Happens When Water Gets In?

The wood core soaks up water and swells. Once that happens, the steel skin peels off, and the panel becomes uneven and bumpy. You cannot fix a swollen wood core.

Tip: Never install woodcore in a basement or near the coast without a vapor barrier. You have been warned.

2. Fire Safety: Not Always Good

Steel and calcium sulfate don’t burn. Wood does. Manufacturers add fire retardants to woodcore, but in a real fire, the panels will still burn and smoke.

• Chipboard smoke is toxic.

• Some insurance companies charge more for woodcore.

• You often cannot use woodcore in air return spaces without special coatings.

3. Still Heavy to Ship

Yes, woodcore is lighter than concrete. But compared to hollow steel, it is heavy. A full pallet of woodcore panels weighs about 1,500 lbs. You also cannot stack them as high as steel panels, or the bottom ones will get crushed. Shipping costs less than concrete but more than hollow steel.

4. Can Warp Over Time

Even without water, big temperature changes can be a problem. If the room changes from very cold to very hot, the wood core expands and shrinks. Over five years, the panel edges may curl up. You will feel that annoying bump when rolling your chair over the seam.

Woodcore vs. Others (Calcium Sulfate vs. Steel)

Let's compare them clearly.

Calcium Sulfate – The Hulk
Heavy, strong, waterproof, and fireproof. Great for data centers. Bad for your back. Costs more.

All-Steel – The Iron Man
Light, can be recycled, and 100% waterproof. But very loud to walk on. Expensive.

Woodcore – The Captain America
Balanced. Strong enough, cheap enough, and quiet. But has one weakness: water.

Bottom line:
If you need waterproof and fireproof, do not choose woodcore.
If you want quiet and low cost, choose woodcore.

Who Should Definitely Buy Woodcore Raised Floors?

You are the right fit if:

• You are building a dry office (no water risks).

• You want a quiet floor (good for law firms, libraries, studios).

• You have a tight budget but don't want cheap plastic panels.

• You need to cut the floor easily on-site for odd-shaped rooms.

• You have a short installation time (lighter panels go in faster).

Who Should Avoid Woodcore Altogether

Choose steel panels instead if:

• You are building a data center. One leaking cooling pipe can ruin $50,000 worth of floor.

• The building has no air conditioning. Open doors let in humidity, which will destroy woodcore.

• Your fire marshal does not approve of wood.

• You need to support over 2,000 lbs in one spot. Use calcium sulfate instead.

Real Examples: Data Centers, Offices, Museums

Let's be specific. I once saw woodcore fail in a server room because an ice cream machine leaked upstairs. True story. But I have also seen woodcore work well for ten years in a large call center.

• Museums like woodcore because it reduces vibration. Less shaking means better protection for old artifacts.

• Offices like it because changing the layout is cheap and easy.

• Retail stores like it because rolling carts move quietly.

Installation Tips: What to Do and What Not to Do

Do: Use a vapor barrier under the pedestals if the concrete slab is new. New concrete takes months to fully dry.

Don't: Cut the panels with a wet saw. Keep the wood dry.

Do: Seal the cut edges with latex paint or edge sealer.

Don't: Leave loose panels over the weekend in a building that might get rain.

Maintenance: How to Keep Woodcore in Good Shape

Treat woodcore like something made of wood. It needs to stay dry.

• Clean spills right away. Don't let coffee sit on the seams.

• Control room humidity. Keep it between 35% and 65%.

• Check the edges. That's where water gets in first.

• Spread out heavy weight. Use supports under very heavy racks.

Conclusion: Is Woodcore Right for Your Next Project?

Look, no building material is perfect. Woodcore raised floors are like comfortable, sensible shoes. They are not the most beautiful (that's glass). They are not the strongest (that's steel). But they are the most practical for dry indoor spaces.

Choose woodcore if you want to:

• Save money.

• Reduce echo in a large room.

• Keep your installation team happy.

But remember the number one rule: Keep it dry. Do that, and these panels will last for years. Ignore it, and you will have swollen, spongy floors that you regret.

So ask yourself: Is your building very humid or very dry? If it's dry, go with woodcore. You won't regret it.

FAQs About Woodcore Raised Floor Panels

1. Can you install woodcore floors in a bathroom?
No. The risk of water is too high. Use sealed steel or calcium sulfate for wet areas.

2. How long do woodcore panels last?
In a normal dry office (around 70°F, 50% humidity), they last 15–20 years. In a humid warehouse, maybe only 5 years.

3. Can woodcore panels be recycled?
Partially. The steel skin can be recycled. The wood core is usually burned for energy or sent to a landfill. It is not fully reusable like steel.

4. Do I need special tools to install woodcore?
No. A regular circular saw with a carbide blade works fine. This is a big advantage over concrete panels.

5. Will a heavy server rack leave dents in woodcore?
No. The steel top spreads the weight. But if the wood core gets wet, the material softens and the wheels can dig in.

6. Can I replace just one damaged woodcore panel?
Yes, easily. That's the benefit of raised access floors. Use a suction tool to lift the old one out and drop a new one in.
