Raised Floor Load Capacity: How Much Weight Can It Support?

Raised floors play a major role in modern offices, data centers, and industrial facilities by supporting heavy equipment while managing airflow and cables. But here’s a question many overlook:

How much weight can a raised floor actually support?

This article breaks down everything you need to know—load ratings, material differences, testing standards, and how to choose a floor structure that won’t collapse under pressure.

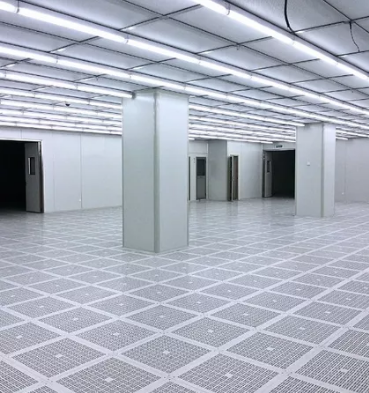

Introduction to Raised Floors

A raised floor is essentially a raised platform. Its surface is built with detachable floor panels supported by individual pedestals. This type of flooring is widely used in spaces that demand flexible cable management and proper ventilation systems, for example:

• Data centers

• Power plants

• Control rooms

• Modern offices

Not all raised floors are the same—some panels support light office furniture, while others can hold extremely heavy server racks.

Why Load Capacity Matters in Modern Infrastructure

Think of raised floors as the “hidden skeleton” of your facility.
If they fail, everything above them is at risk.

Load capacity matters because:

• Modern IT and industrial equipment is getting heavier

• Rolling loads (carts, toolboxes, server maintenance trolleys) are more common

• Overloading can lead to structural failure, downtime, or safety hazards

Simply put: understanding load capacity prevents expensive and dangerous disasters.

Understanding Load Capacity Terminology

Before choosing a raised floor, you need to understand the load-related terms used in specifications.

Static Load

A non-moving weight placed at a single point—such as a server rack.

Uniform Load

Weight distributed evenly across an entire floor area.

Dynamic Load

Moving or rolling loads—such as tool carts, hand trucks, or mobile equipment.

Ultimate Load

Peak load capacity of the panel during lab testing until damage occurs.(Do not confuse this with safe working load.)

Typical Load Ratings for Raised Access Floors

Raised floors come with different performance levels depending on the environment.

Standard Commercial Floors

• Point load: 300–800 lb

• Suitable for: office desks, chairs, printers

Heavy-Duty Industrial Floors

• Point load: 1,000–2,000 lb

• Suitable for: manufacturing tools, heavy rolling carts

Data Center-Grade Floors

• Point load: 1,250–3,000 lb

• Suitable for: servers, UPS systems, battery cabinets

Data centers require the strongest raised floors because equipment loads are high and concentrated.

Key Factors That Determine Weight Capacity

Several design elements affect how much weight a raised floor can safely support.

Panel Material and Construction

Floor panels are made from:

• Steel

• Calcium sulphate

• Aluminum

• Woodcore

Each material has its own strength rating.

Steel Thickness and Reinforcement

Thicker steel sheets and additional weld reinforcement significantly increase panel strength.

Pedestal Height and Structural Stability

• Short pedestals = stronger stability

• Higher pedestals = increased vibration and reduced load capacity

Understructure Types (Bolted vs. Stringer Systems)

• Stringer systems → higher load capacity

• Bolted systems → more stable

• Bare pedestal systems → lowest capacity

Installation Quality

Even the strongest raised floor can fail if installed poorly.

Raised Floor Load Capacity by Panel Type

Different panel constructions support different weight levels.

Steel Encapsulated Panels

• Durable and corrosion-resistant

• Common in commercial spaces

• Point load: 800–1,500 lb

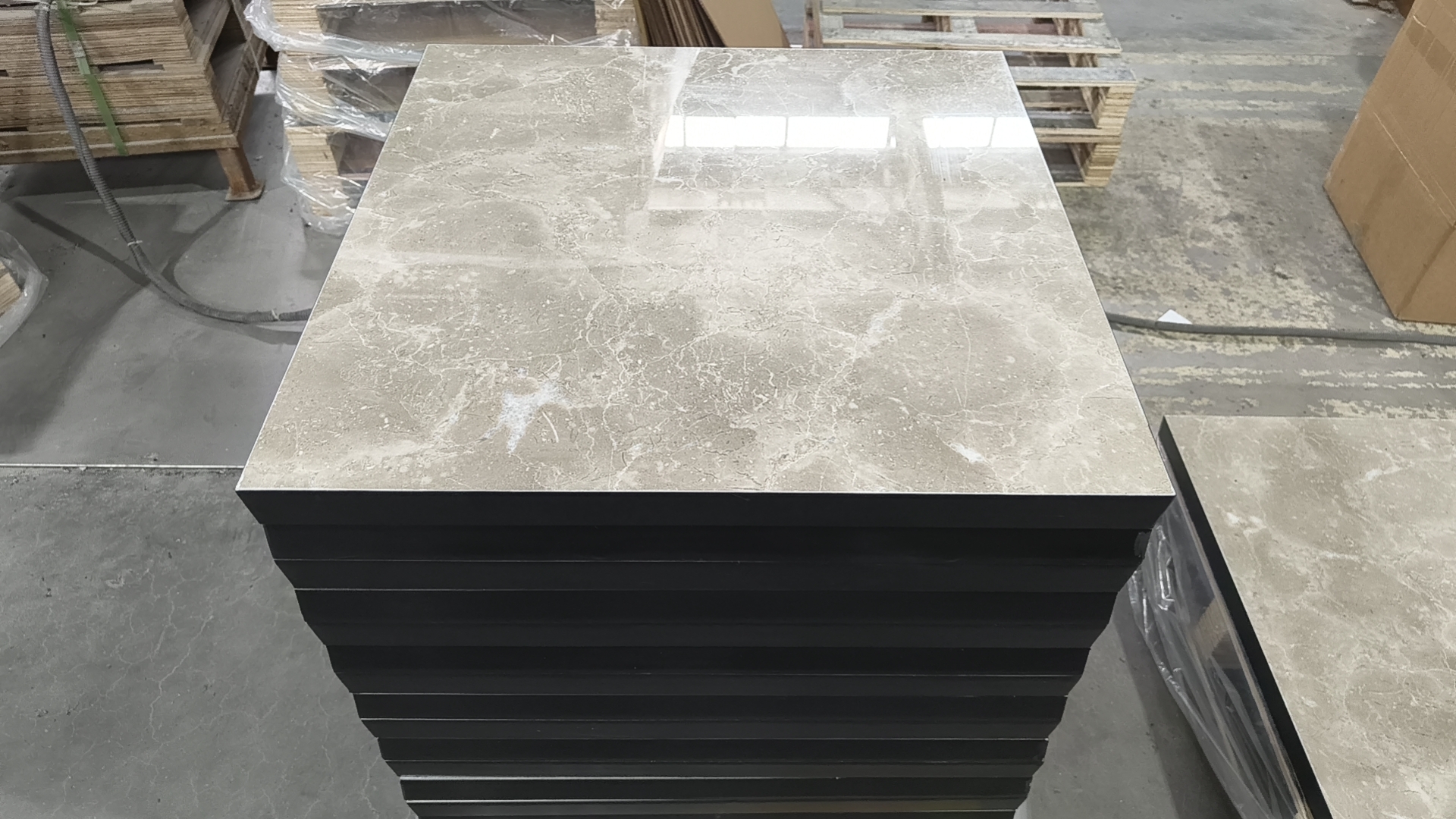

Calcium Sulphate Panels

• Excellent fire resistance

• Good acoustic performance

• Point load: 1,000–2,000 lb

Aluminum Panels

• Lightweight, incredibly strong

• Popular in data centers

• Point load: 1,500–3,000 lb

Woodcore Panels

• Cost-effective

• Mostly for offices

• Point load: 300–800 lb

How to Calculate the Required Load Capacity

Choosing the right raised floor starts with evaluating your equipment.

Identify Equipment Weight

Consider:

• Server racks

• UPS units

• Batteries

• Printers or lab equipment

Compare Point Loads vs. Rolling Loads

A 300 lb rolling cart may generate 500–700 lb of dynamic pressure on the floor.

Add Safety Factors

Most engineers add a 25%–50% safety margin to prevent overload risk.

Load Requirements for Common Applications

Offices

• Moderate furniture weight

• Light rolling loads

• Usually 300–800 lb point load requirement

Server Rooms & Data Centers

• Concentrated rack loads

• Heavy UPS systems

• Often require 1,250–3,000 lb point load panels

Industrial & Manufacturing Facilities

• Constant rolling loads

• Heavy equipment movement

• Need 1,000–2,000 lb point load floors or higher

Testing Standards for Load Capacity

Raised floor systems are tested according to international standards.

CISCA Standards (USA)

Defines concentrated load and ultimate load test procedures.

PSA MOB PF2 PS (UK)

Sets performance classes for raised access floors in commercial buildings.

ISO International Standards

Used globally to regulate performance and material quality.

Signs Your Raised Floor Is Overloaded

Watch for these warning signs:

Panel Deformation

Sagging or bending indicates stress damage.

Pedestal Movement

Wobbling pedestals mean structural instability.

Unusual Noises

Creaking or cracking sounds indicate load stress.

How to Prevent Load-Related Failures

Regular Inspection

Check panel alignment, pedestal tightness, and surface deformation.

Reinforcement Options

Add stringers, cross-bracing, or thicker pedestals for higher loads.

Upgrading Floor Panels

Replace weak panels with heavy-duty steel or aluminum versions.

Future Trends in High-Capacity Raised Floors

Stronger Composite Materials

Manufacturers are developing hybrid steel-composite panels with lighter weight and higher strength.

Smart Load Monitoring

IoT sensors will soon deliver real-time load monitoring to avoid failures caused by overload.

Conclusion

When it comes to modern workspaces and facilities, the load-bearing capacity of raised floors plays a vital role in keeping everything safe, steady and working well for years to come. If you learn about different load requirements, panel materials, industry testing rules and on-site environmental conditions from Dawn Floor, you’ll be able to pick the ideal raised floor solution to hold your gear securely. This works perfectly for regular offices, factories and large data centers alike.
