How Manufacturers Ensure the Load Capacity of Raised Access Floors

What is a Raised Access Floor?

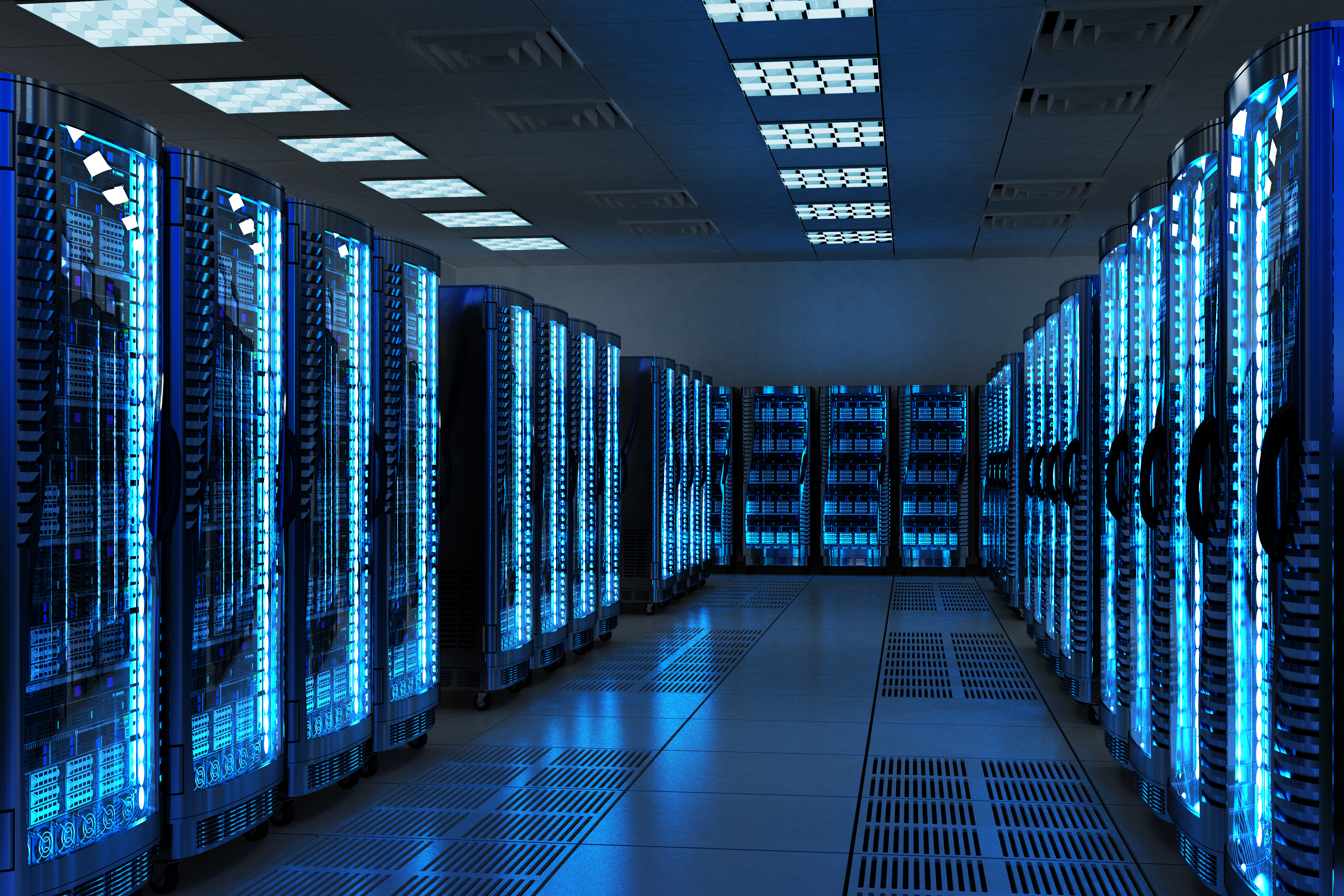

A raised access floor is a versatile flooring system that creates a gap between the base concrete slab and the finished floor surface. This space allows for the efficient routing of various building systems, such as electrical wiring, air conditioning ducts, and plumbing pipes. Raised access floors are commonly used in data centers, control rooms, office buildings, and other spaces where flexibility, easy maintenance, and accessibility are paramount.

Importance of Load Capacity in Raised Access Floors

In the field of raised access floor, loading capacity refers to the maximum weight the flooring can safely support without compromising structural integrity. This parameter is critical because such floor not only supports foot traffic but also bears heavy equipment such as servers, file cabinets, and other technical devices. Manufacturers must ensure their raised access floor can withstand these loads without bending, cracking, or structural failure.

How Load Capacity Affects the Design

Manufacturers design raised access floors need to consider specific loading capacities. Higher loading capacities require stronger materials, thicker panels, and more robust support structures. Designers typically adjust panel thickness, material composition, and stud height to ensure the floor can withstand anticipated weights.

Common Issues with Insufficient Loading Capacity

Insufficient loading capacity can bring a range of problems, from floor panels sagging under weight to structural collapse in extreme cases. In environments like data centers, this can lead to catastrophic consequences—not only damaging precision equipment but also creating safety hazards. Ensuring floors meet required loading capacity helps avoid such risks.

Key Factors Affecting the Load Capacity

Material Choices and Their Impact

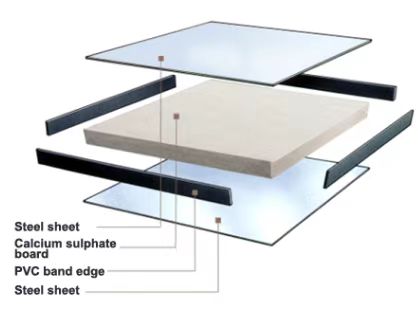

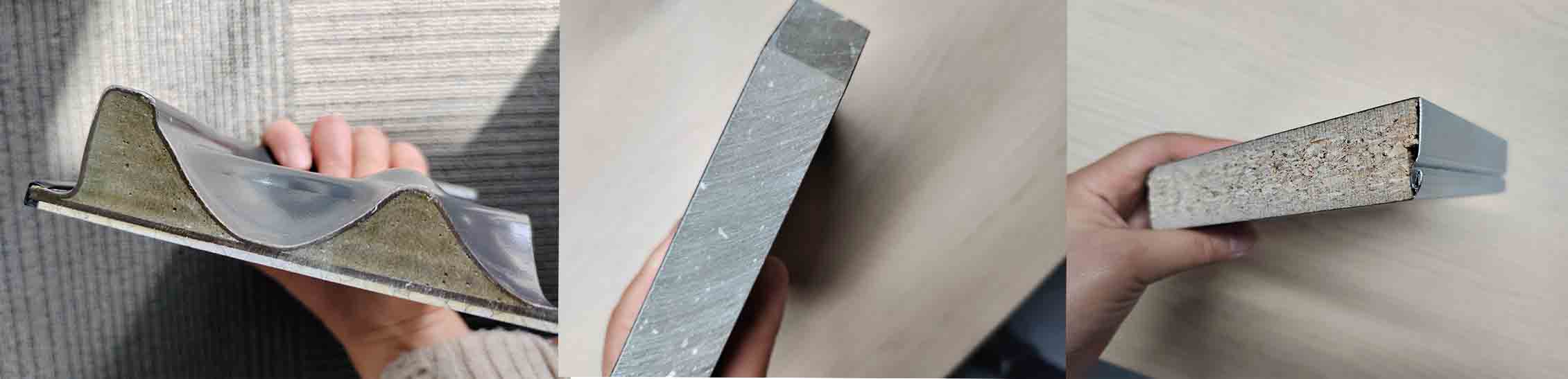

The materials used for raised flooring directly impact its loading capacity. For instance, calcium sulfate boards are renowned for their durability and loading strength, while woodcore panels offer both strength and lightweight properties. Manufacturers must carefully select materials based on the anticipated loading requirements.

Floor Height and Panel Size

The height of the raised floor and the size of the panels play a critical role in determining the floor’s loading capacity. Taller floors require stronger panels and pedestals to ensure stability. Similarly, larger panels need to be engineered to withstand heavier loads without buckling or warping.

Structural Support Mechanisms

Pedestals, stringers, and other structural components are critical in supporting the floor panels. These components must be designed to provide even distribution of weight, ensuring that no single point bears too much pressure. The quality and configuration of these supports are key to ensuring the floor’s overall strength.

Testing Methods to Ensure Load Capacity

Dynamic Load Testing

Dynamic load testing simulates real-world usage scenarios. Manufacturers simulate the stresses a floor endures during daily use by moving heavy objects. This testing is crucial for ensuring the floor can withstand not only static loads but also dynamic loads such as foot traffic or equipment movement.

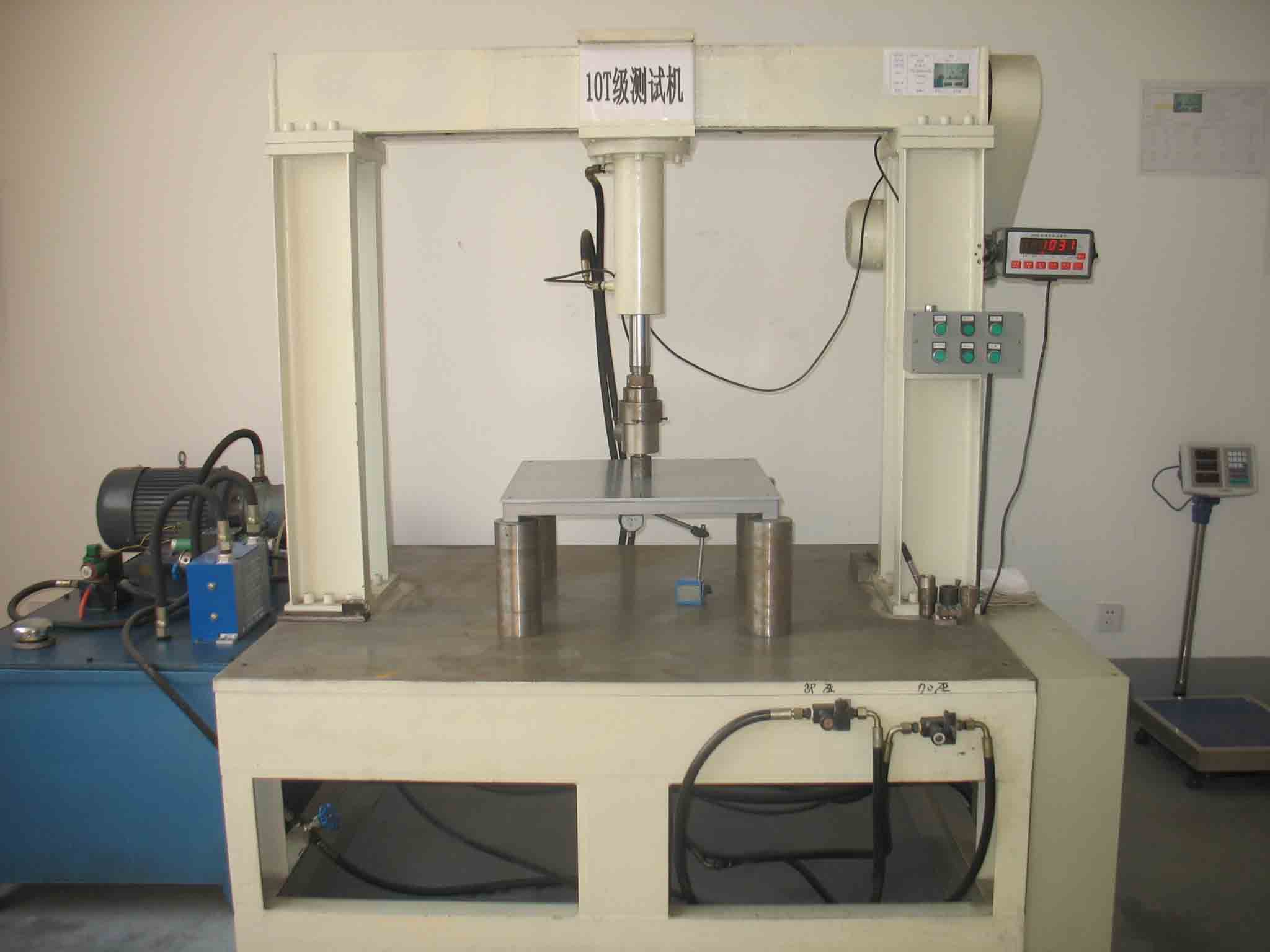

Static Load Testing

In contrast to dynamic testing, static load testing involves applying a steady weight to the floor to measure how much pressure it can withstand before showing signs of damage or deflection. This test is essential to determine the absolute limits of the floor’s load capacity.

Quality Control and Certification

Manufacturers must adhere to strict quality control procedures to ensure that every floor panel meets the required load capacity. Certifications from bodies like PSA (Professional Standards Agency) and ISO (International Organization for Standardization) provide assurance that the product has undergone rigorous testing and meets industry standards.

The Role of Manufacturing Standards

ISO and Other Certifications

ISO standards for raised access floors ensure that they meet global safety and performance requirements. These certifications are vital for establishing trust with customers, particularly in industries like data centers, where reliability is non-negotiable. Manufacturers must meet these standards during both design and testing phases.

Load Capacity Tests According to PSA Standards

PSA standards provide guidelines for loading capacity testing, ensuring all raised access floors meet uniform quality levels. PSA-certified testing guarantees that floors not only withstand design loads but also endure years of use without significant deterioration.

Innovations in Load Capacity Testing

Smart Sensors and Load Monitoring Systems

To enhance loading capacity testing, manufacturers are increasingly using technologies. Sensors embedded within raised access floors monitor weight distribution in real time, providing valuable data on floor performance under various operating conditions. This helps identify weak points before potential issues develop.

Why Proper Load Capacity is Crucial for Safety

Risk of Structural Failure

Ignoring the importance of load capacity can lead to catastrophic failures. In environments such as data centers, floor panel collapse may cause significant downtime, critical data loss, or even endanger lives. Adequate load-bearing capacity ensures floors remain stable and secure under heavy loading.

Conclusion: The Future of Raised Access Floors

With technological development and growing industry demands, ensuring the loading capacity of raised access floors has become increasingly critical. Manufacturers continuously refine testing methods, materials, and designs to deliver floor products that not only meet but exceed expectations. Equipped with innovative technologies like smart sensors and more stringent testing standards, the future of raised access floors looks bright, promising safe and reliable performance for years to come.
