Standard Raised Floor Height for Data Centers

Introduction to Raised Floors in Data Centers

Data centers are the backbone of the digital world.

Every email, cloud application, online transaction, and streamed video depends on servers operating in highly controlled environments.

One of the most important yet often overlooked features of a modern data center is the raised floor system.

While many people focus on servers, cooling units, and network equipment, the height of a raised floor can significantly impact performance, cooling efficiency, cable management, and future expansion.

Choosing the right raised floor height is not simply a construction decision—it is a strategic investment in the long-term success of the facility.

In this guide from Dawn Modular Floor, we'll explore the standard raised floor height for data centers, the factors that influence it, and how organizations can select the ideal height for their specific requirements.

What Is a Raised Floor System?

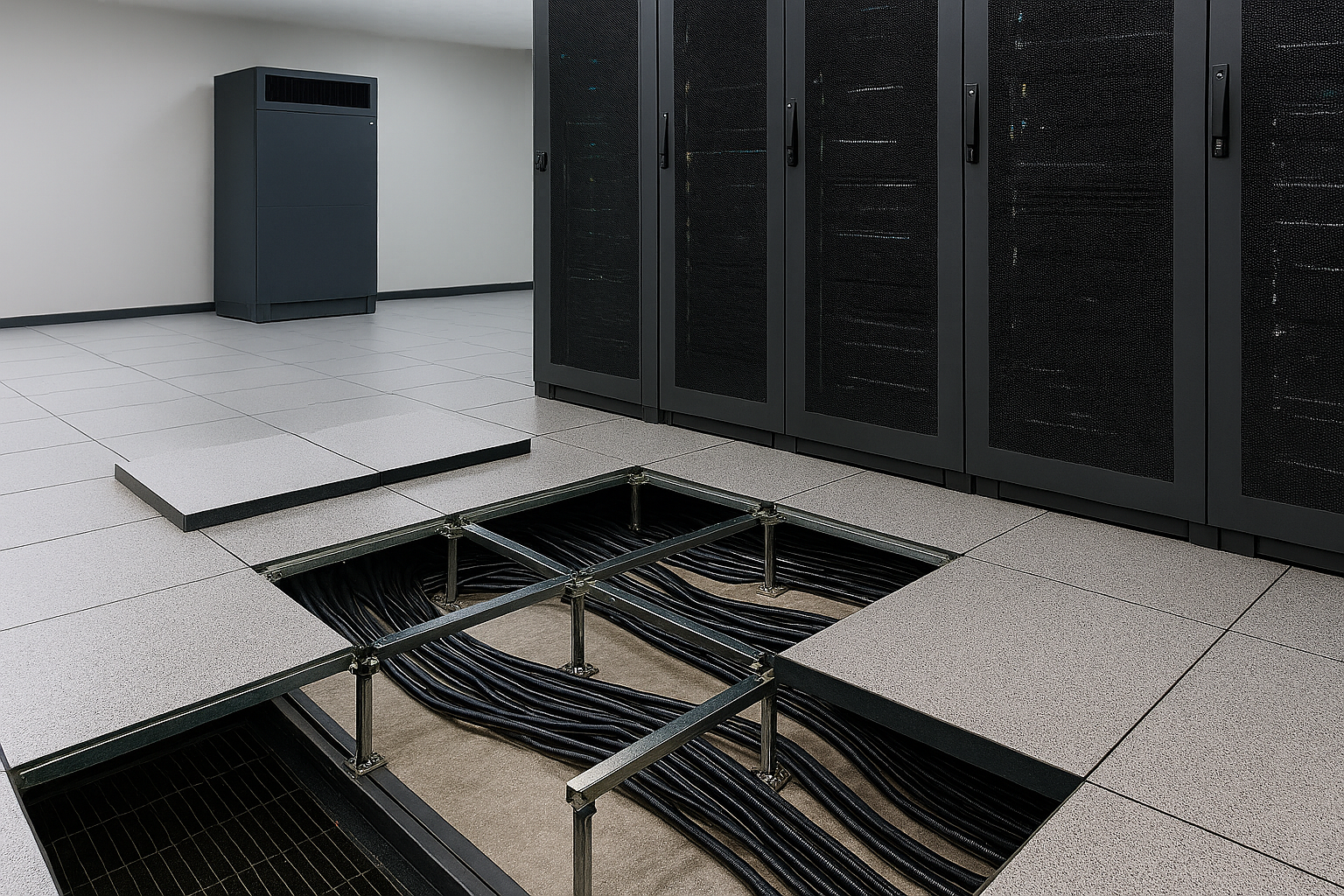

A raised floor system, also known as an access floor, consists of removable floor panels installed above the building's structural floor.

The space created between the two floors is called the underfloor plenum.

This underfloor void serves multiple purposes, including:

Main Components of a Raised Floor

• Floor panels

• Pedestals

• Stringers or support beams

• Underfloor plenum space

• Surface finishes such as HPL or vinyl coverings

Together, these components create a strong and flexible platform capable of supporting heavy IT equipment while providing easy access to critical infrastructure beneath the floor.

Why Raised Floor Height Matters

The height of a raised floor affects much more than appearance.

It directly influences operational efficiency and future scalability.

Airflow Management

Cooling costs rank among the biggest recurring outlays for data center operation.The hollow underfloor cavity commonly serves as an air distribution plenum, transporting chilled air straight to server enclosures via ventilated floor tiles.Insufficient underfloor clearance restricts air circulation, which leads to inconsistent thermal dissipation and risks electronic hardware overheating.

Cable Management

Modern data centers contain thousands of power and communication cables.

Adequate floor height ensures these cables can be organized efficiently without obstructing airflow.

A crowded underfloor space can create maintenance difficulties and increase the risk of cable damage.

Future Scalability

Technology evolves rapidly.

A raised floor with sufficient height allows organizations to add new cables, cooling systems, and equipment without major renovations.

Think of it as building extra lanes into a highway before traffic becomes congested.

What Is the Standard Raised Floor Height?

There is no single universal height suitable for every facility.

However, industry practices have established common ranges.

Common Height Range

Most modern data centers use raised floor heights between:

• 300 mm (12 inches)

• 600 mm (24 inches)

• 900 mm (36 inches)

These dimensions represent the finished floor height measured from the structural slab to the top surface of the access floor.

Typical Industry Recommendations

For many enterprise data centers, a raised floor height of 600 mm (24 inches) is considered the industry standard.

This height provides:

• Adequate airflow capacity

• Efficient cable routing

• Reasonable installation costs

• Flexibility for future growth

Many designers view 600 mm as the ideal balance between performance and budget.

Factors That Determine Raised Floor Height

Selecting the appropriate floor height requires evaluating several critical factors.

Cooling Requirements

The greater the cooling demand, the larger the underfloor air plenum should be.

High-density server environments often require taller raised floors to support increased airflow volumes.

Facilities utilizing underfloor air distribution may benefit from heights of 750 mm to 1200 mm or more.

Cable Density

Data centers continue to handle increasing amounts of data traffic.

More equipment means more power cables, more fiber optic cables, more network connections.

Higher floor systems provide sufficient space to separate cables and maintain proper airflow pathways.

Equipment Load Capacity

Although floor height itself does not directly determine load capacity, taller pedestal systems must be designed to support heavy equipment safely.

Engineers often consider both structural stability and loading requirements when determining floor height.

Building Constraints

Not every facility has unlimited vertical space.

Factors such as ceiling height, existing building structure, HVAC equipment placement, and fire protection systems may limit how high the raised floor can be installed.

Raised Floor Height Standards by Facility Type

Small Server Rooms

Small server rooms often utilize floor heights between 300 mm and 450 mm.

These environments typically have lower cable volumes, reduced cooling requirements, and limited equipment density.

As a result, a lower raised floor can adequately meet operational needs.

Enterprise Data Centers

Enterprise facilities commonly use heights between 600 mm and 900 mm.

This range supports significant cable infrastructure, enhanced airflow management, and long-term expansion capabilities.

Many corporate data centers fall within this category.

Hyperscale Data Centers

Large cloud providers and hyperscale facilities frequently use heights ranging from 900 mm to 1500 mm.

These massive facilities require extensive cable routing, high airflow capacity, and advanced cooling architectures.

Larger plenum spaces help maintain operational efficiency at scale.

Benefits of Higher Raised Floors

Although higher floors increase initial costs, they offer several advantages.

Improved Air Distribution

A larger underfloor plenum acts like a bigger highway for air movement.

Benefits include reduced air pressure loss, more uniform cooling, better airflow balancing, and improved energy efficiency.

Easier Infrastructure Expansion

As technology grows, infrastructure needs change.

Higher floors provide additional cable pathways, room for future upgrades, and greater flexibility during renovations.

Challenges of Excessive Floor Height

Bigger isn't always better.

Increased Construction Costs

Taller pedestal systems require more materials, additional labor, and stronger structural components.

These factors increase project costs significantly.

Structural Considerations

As floor height increases, stability becomes increasingly important.

Engineers must account for lateral movement, seismic activity, equipment loads, and building regulations.

Proper bracing and reinforcement may be required.

Raised Floor Height and Cooling Efficiency

Cooling efficiency remains one of the primary reasons raised floors are used in data centers.

Underfloor Airflow Optimization

An appropriately sized plenum helps maintain consistent airflow throughout the facility.

Key benefits include reduced hot spots, better temperature control, improved server reliability, and lower cooling energy consumption.

Hot and Cold Aisle Integration

Modern data centers often implement hot aisle and cold aisle containment strategies.

Well-engineered access flooring enables such layouts by supplying conditioned cool air accurately at target positions, avoiding cross-air mixing, boosting cooling performance and permitting denser server rack deployment.

Raised Floor Height vs. Ceiling Height

Floor height should never be evaluated independently.

A balanced relationship between floor height and ceiling height is essential.

For example, a 600 mm raised floor in a room with a 4-meter ceiling usually works well, while a 1200 mm floor in a low-ceiling room may create maintenance challenges.

Designers must ensure sufficient clearance for equipment installation, lighting systems, overhead cable trays, fire suppression systems, and personnel access.

Industry Standards and Best Practices

While exact requirements vary by project, many industry professionals follow these general guidelines:

• 300–450 mm for basic server rooms

• 600 mm as a common enterprise standard

• 900 mm or higher for high-density facilities

• Additional height for advanced airflow requirements

Recommended industry approaches cover airflow simulation analysis, reserving expansion space for prospective upgrades, segregating electrical cabling from data wiring, keeping unobstructed ventilation routes, and selecting raised flooring certified for specified load limits.

Common Mistakes When Choosing Floor Height

Many organizations underestimate their future requirements.

Choosing the Lowest-Cost Option

Saving money initially may result in expensive upgrades later.

Ignoring Future Expansion

Today's infrastructure may double within a few years.

Planning for growth is essential.

Overlooking Airflow Requirements

Poor airflow design can lead to hot spots, equipment failures, and higher energy costs.

Failing to Consider Maintenance Access

Technicians need adequate space to manage cables and perform repairs efficiently.

A cramped underfloor environment can become a long-term operational burden.

Future Trends in Data Center Raised Floors

Data center design continues to evolve.

Emerging trends include higher rack power densities, advanced containment systems, AI-driven cooling optimization, modular data center construction, and smart monitoring technologies.

Even as certain installations shift to slab flooring equipped with ceiling-mounted cooling solutions, access flooring stays indispensable across numerous projects, especially for sites putting a premium on layout adaptability and concealed underfloor service routing. Upcoming raised floor constructions are expected to adopt higher-grade raw materials, upgraded load-bearing performance and optimized air circulation layouts to cater to growing stringent operational requirements.

Conclusion

Selecting the right raised floor height is critical to a data center's operational efficiency, scalability, and long-term performance.

A properly planned raised floor improves airflow management, simplifies cable organization, supports future expansion, and enhances energy efficiency.

While there is no one-size-fits-all solution, understanding industry standards, facility requirements, and potential growth ensures a strategic decision.

Whether managing a small server room or a hyperscale cloud facility, the raised floor height should be viewed as an essential component of data center design.

By carefully balancing airflow needs, cable density, structural considerations, and future growth, organizations can maximize both performance and flexibility, ensuring their data center remains effective for years to come.
