Raised Floor Installation Guide (Step-by-Step)

Raised floor systems are now very common in modern commercial buildings, data centers, offices, control rooms, and tech facilities. You can think of a raised floor as a hidden path under your workspace—a space where cables, wires, cooling systems, and utilities can run without making a mess above the floor.

If you are planning to upgrade a data center or remodel an office, knowing how to install a raised floor can save you time, money, and future problems. This complete guide explains each step of raised floor installation, from getting ready to the final check.

Introduction to Raised Floor Systems

A raised floor system is made of removable panels held up by adjustable supports. The empty space between the real floor and the raised floor creates a hidden area that holds electrical wires, data cables, HVAC ducts, and other utilities.

This smart flooring solution provides flexibility, easy access, and better building performance. That's why it is a popular choice in places that rely on technology.

What Is a Raised Floor?

A raised floor, also called an access floor, is a second floor built above the building's original concrete base. It creates a higher surface supported by pedestals, sometimes with extra beams called stringers.

The space underneath can be used to neatly organize:

• Electrical wiring

• Data cables

• Fiber optic networks

• Cooling systems

• Plumbing lines

• Building automation systems

Because of its modular design, each panel can be removed whenever repairs or upgrades are needed.

Why Install a Raised Floor

Putting in a raised floor brings many day-to-day and long-term benefits.

Better Cable Management

Without a raised floor, cables often get tangled and messy. A raised floor gives them their own space, keeping wires neat and safe. This makes fixing problems faster and improves safety at work.

Better Airflow

In data centers, cool air can be sent up through special floor panels with holes, going directly to equipment racks. This focused cooling saves energy and helps keep machines at the right temperature.

Easy to Maintain and Access

Unlike regular floors, where wires and pipes are hidden in walls or ceilings, a raised floor lets you quickly reach the utilities underneath—just lift up one panel.

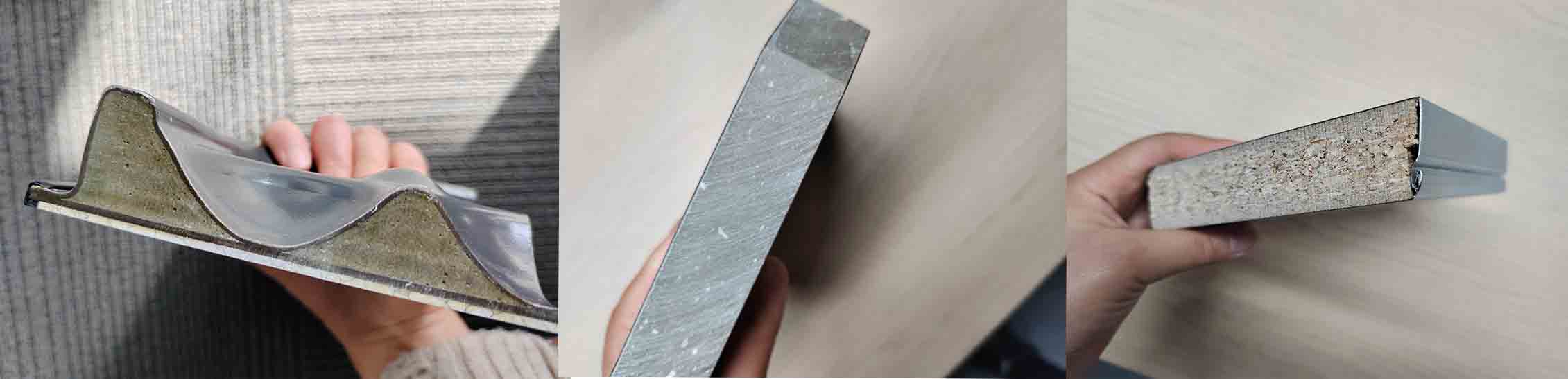

Types of Raised Floor Systems

Which floor system you choose depends on what your project needs.

Steel Cementitious Raised Floors

These panels have a steel outer shell filled with a cement-like material. They are very strong, fire-resistant, and long-lasting.

Good for:

• Data centers

• Server rooms

• Control centers

Calcium Sulphate Raised Floors

Made from dense calcium sulphate, these panels are great at reducing noise and resisting fire.

Commonly used in:

• Corporate offices

• Schools

• Commercial buildings

Woodcore Raised Floors

These panels use a strong wood core with protective coatings or steel covers.

Benefits include:

• Lightweight

• Low cost

• Easy to move and install

Tools and Materials You Will Need

Before you start installing, get all the tools and supplies ready.

Basic Tools

• Laser level

• Chalk line

• Tape measure

• Spirit level

• Screwdrivers

• Power drill

• Rubber mallet

• Panel lifter

• Safety gloves

• Safety glasses

Materials

• Raised floor panels

• Adjustable pedestals (supports)

• Stringers (connecting beams)

• Adhesives (glue)

• Fasteners (screws or bolts)

• Edge trims

Having everything on site before you begin will help avoid delays.

Planning Before Installation

Getting ready is often more important than the installation itself.

Check the Site

Look over the area where you will install the floor.

Check for:

• Cracks in the surface

• Moisture or dampness

• Damage to the structure

• Uneven concrete

Fix any problems before moving forward.

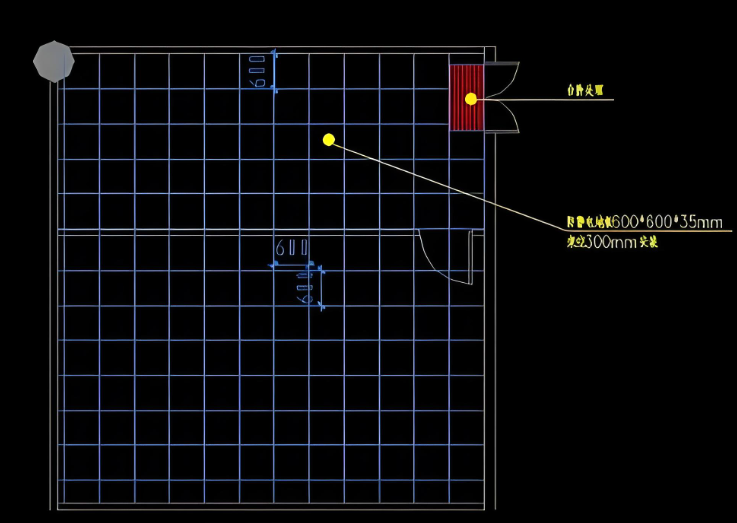

Measure and Plan the Layout

Taking exact measurements is very important.

Make a detailed floor plan that shows:

• Room sizes

• Where equipment will go

• Paths for cables

• Areas for airflow

• Positions of access panels

A good layout reduces wasted materials and makes the job more efficient.

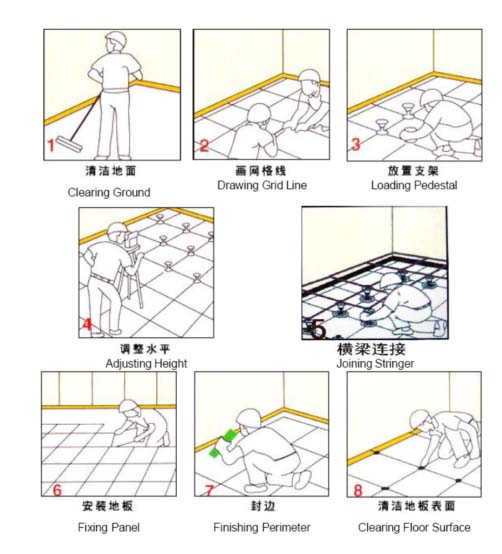

Step 1: Get the Subfloor Ready

The quality of the raised floor decides how well the whole project will go.

What to do first:

• Remove dust and debris

• Clean off oil and grease stains

• Fix cracks and damaged areas

• Put down a moisture barrier if needed

The subfloor must be dry, clean, and solid before you start installing.

Step 2: Draw the Grid Lines

Think of the grid as the map for the entire raised floor system.

Using a laser level and chalk line:

• Set a reference point

• Mark where the grid lines cross

• Double-check the room size

• Make sure the panels will line up correctly

Being precise at this step helps avoid alignment problems later.

Step 3: Put in the Pedestals

Pedestals are the main support of the raised floor.

How to install them:

• Apply pedestal glue

• Place the pedestals according to the grid

• Fasten each pedestal securely

• Let the glue dry

Guidelines for Pedestal Spacing

Most systems use a standard size of 600 mm × 600 mm.

But spacing may change depending on:

• How much weight the floor must hold

• The size of the panels

• Building rules

Always follow what the manufacturer recommends.

Step 4: Adjust and Level the Pedestals

This step needs very careful work.

Use a laser level to set each pedestal at the right height.

Make sure:

• All pedestals are the same height

• The surface is flat within a small tolerance

• Everything is lined up correctly across the room

Even tiny differences in height can make the floor unstable or look bad.

Take your time here.

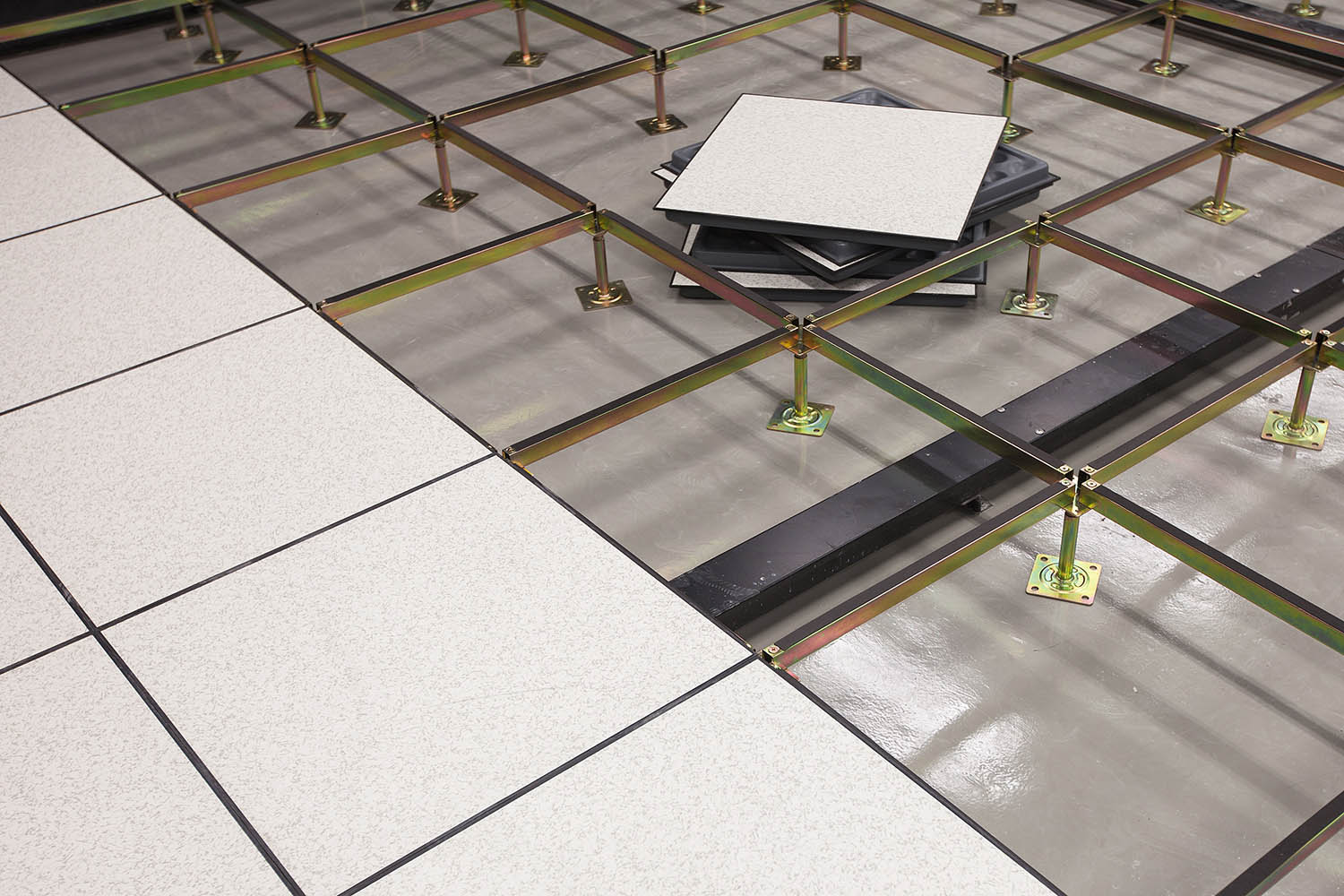

Step 5: Install Stringers

Stringers connect the pedestals and make the floor stronger.

How to install:

• Put stringers between pedestals

• Attach them with bolts or clips

• Check that they are straight

• Tighten all connections

Stringers help spread weight evenly and stop the floor from moving too much.

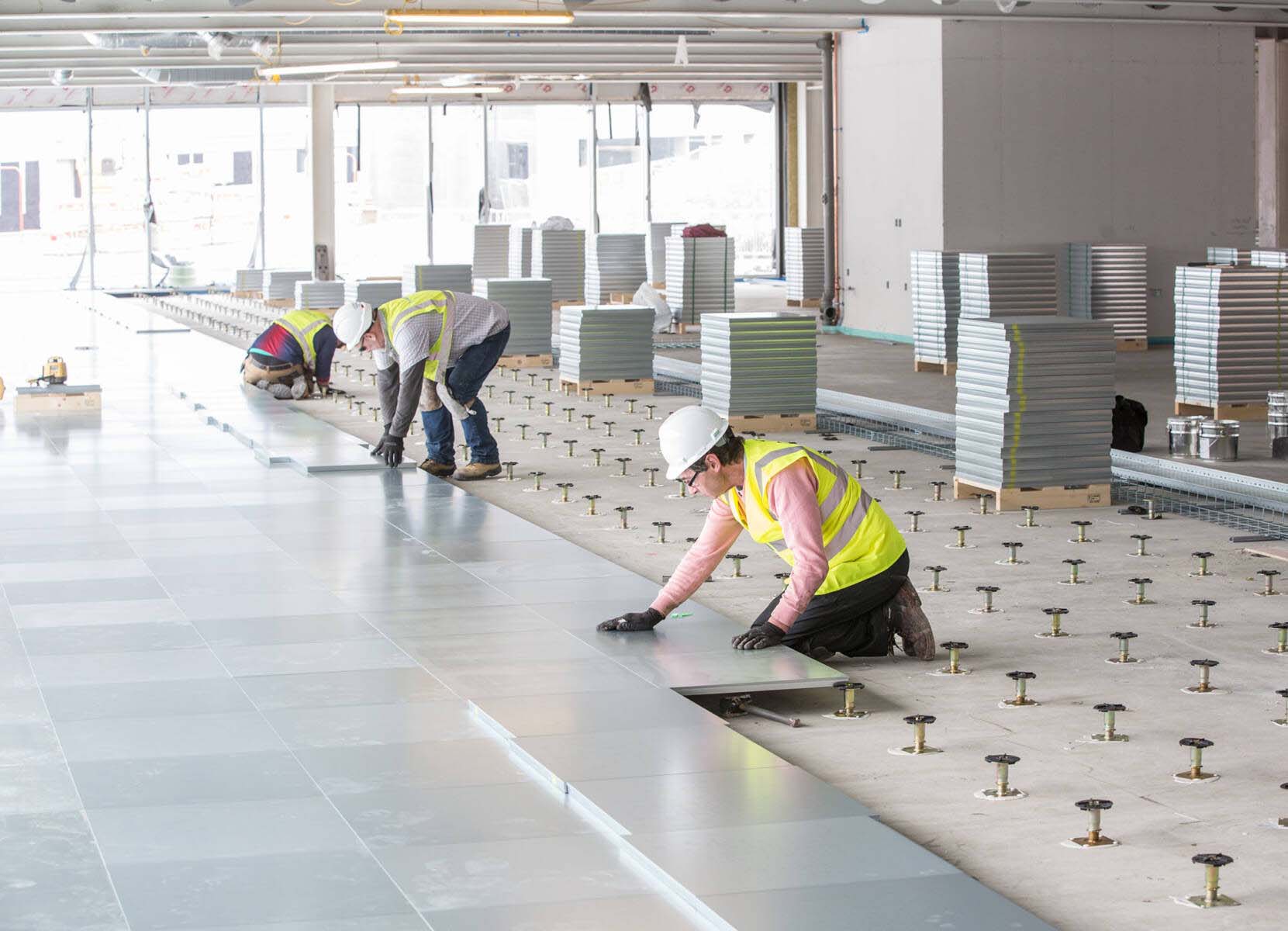

Step 6: Lay the Raised Floor Panels

Now comes the most visible part of the job.

Start in one corner and work your way across the room.

For each panel:

• Lower it carefully onto the tops of the pedestals

• Make sure it sits properly

• Check that it lines up with the panels next to it

• Make sure the surface is level

A panel lifter makes handling easier and helps avoid damage.

Cutting Panels Around Obstacles

Rooms often have columns, pipes, or uneven walls.

When cutting panels:

• Measure twice

• Cut once

• Use tools approved by the manufacturer

• Seal the cut edges if needed

Accurate cuts keep the floor looking good and working well.

Step 7: Final Check and Testing

Before finishing the project, do a full inspection.

Check:

• Panel alignment

• How level the floor is

• Whether the structure is stable

• If the pedestals are secure

• Stringer connections

• The quality of the surface finish

Do load testing if the project requires it.

A careful inspection helps the floor last a long time.

Common Installation Mistakes to Avoid

Even experienced installers can make mistakes.

Common errors include:

• Poor subfloor preparation

• Wrong pedestal spacing

• Not leveling properly

• Panels that are not aligned

• Ignoring the manufacturer's instructions

• Rushing the final inspection

Avoiding these mistakes makes the floor work better and last longer.

Maintenance Tips After Installation

Installation is just the beginning.

Regular maintenance includes:

• Checking for loose panels

• Cleaning the space under the floor

• Making sure pedestals are stable

• Keeping cables organized

• Replacing damaged parts quickly

Routine maintenance keeps the system working well for many years.

Safety Tips During Installation

Safety should never be an afterthought.

Follow these rules:

• Wear safety gear at all times

• Lift heavy items properly to avoid injury

• Keep work areas clean

• Follow electrical safety rules

• Secure unfinished floor sections so no one trips or falls

A safe worksite protects workers and prevents expensive accidents.

Cost Factors for Raised Floor Installation

Several things affect the total cost.

Main factors include:

Type of Material

Steel cementitious panels usually cost more than woodcore panels.

Floor Height

Higher floors need longer pedestals and extra support, which adds cost.

Load Capacity

Stronger systems made for data centers generally cost more.

Labor Costs

Complex layouts and large jobs require more workers and more time.

Finishes

Fancy coverings like stone, carpet tiles, or high-pressure laminate can greatly increase the budget.

Professional Installation vs Doing It Yourself

Should you install a raised floor by yourself?

For small office projects, experienced DIY fans may succeed if they plan carefully.

However, large installations usually go better with professional contractors because they offer:

• Technical knowledge

• Faster job completion

• Meeting building rules and standards

• Warranty protection

• Special tools

For critical places like data centers, hiring a professional is usually a smarter investment.

Conclusion

A raised floor system is more than just a higher surface—it is an infrastructure base that supports modern technology, good airflow, and flexible building operations. By following a step-by-step installation process, from subfloor prep to final inspection, you can build a strong, high-performing raised floor that lasts for decades.

Remember, a successful installation depends on three key things: careful planning, accurate leveling, and strict quality checks. Get those right, and everything else falls into place like pieces of a well-made puzzle.

Frequently Asked Questions (FAQs)

How long does raised floor installation take?

A typical office installation may take a few days, while a large data center project can take several weeks, depending on size and complexity.

What is the standard raised floor height?

Most systems range from 150 mm to 600 mm, though some special jobs may need taller heights.

Can raised floors support heavy equipment?

Yes. Heavy-duty raised floor systems are specially designed to hold servers, storage units, and industrial equipment.

How often should raised floors be inspected?

A professional inspection is recommended at least once a year. High-traffic or critical facilities should be checked more often.

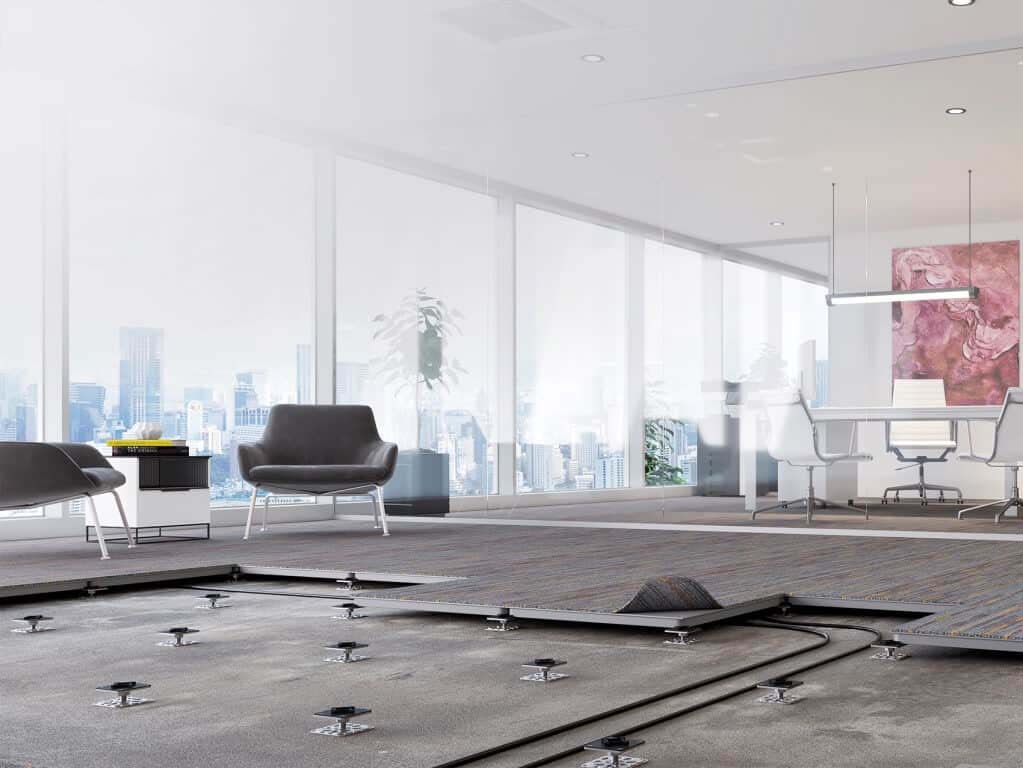

Are raised floors suitable for offices?

Absolutely. Modern offices use raised floors to improve cable management, flexibility, and looks, while also making future technology upgrades easier.
