Aluminum Raised Floor for Cleanroom & Data Center

Introduction: Why Your Floor Matters More Than You Think

Let's be honest — when was the last time you really thought about the floor you're standing on? Probably never. We only notice floors when something goes wrong, like a data center overheating or a cleanroom failing a cleanliness check.

Imagine trying to run a race in deep sand. That’s what managing cables, airflow, and dust feels like without the right floor. That’s where the aluminum raised floor comes in. It’s not just a metal grid — it’s a hidden hero of the tech world. Whether you’re protecting expensive servers or keeping a medical cleanroom safe, this flooring changes everything.

In this guide, we’ll show you why aluminum raised floors are the best choice for cleanrooms and data centers. No hard words. Just useful facts. Ready? Let’s go.

What Exactly is an Aluminum Raised Floor? (The Simple Version)

So, what is an aluminum raised floor? It’s a floor made of aluminum tiles that sits above the original concrete floor. It’s not hard to understand, and it works really well.

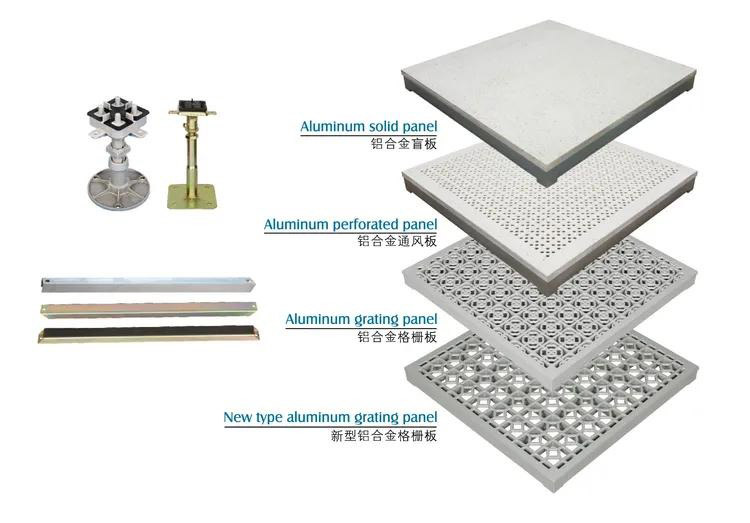

The Three Main Parts of a Raised Floor

Think of it like a table with many legs. A raised floor has three simple parts:

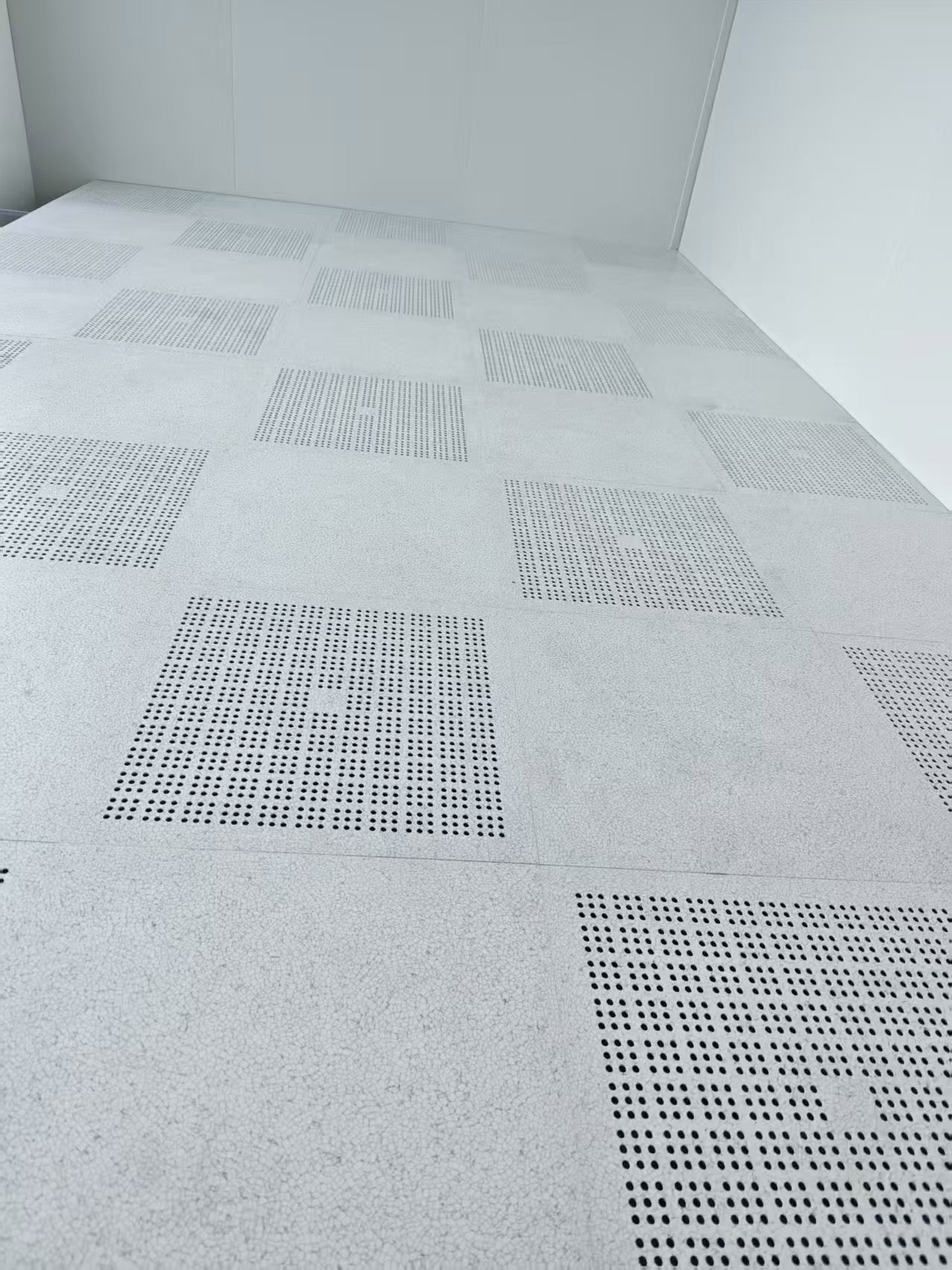

The Panels – These are aluminum tiles, either solid or with holes. Most are 2 feet by 2 feet.

The Pedestals – These are adjustable supports that hold the tiles up.

The Stringers (optional) – These are bars that connect the supports. They help keep the floor steady in an earthquake.

The empty space between the concrete floor and the aluminum tiles is usually 6 to 48 inches high. This space becomes a hidden path for cables, pipes, and cold air.

Aluminum vs. Steel vs. Wood Core: A Material Showdown

You might ask, “Why not just use steel?” Good question. Steel is strong, but it rusts. Wood core (cheap particleboard) swells in humidity and burns. Aluminum, however, is the Goldilocks material: not too heavy, not too weak, just right. It doesn’t rust, it doesn’t rot, and it plays nice with sensitive electronics.

The Cleanroom Environment: A Carefully Controlled Space

Cleanrooms are like operating rooms for industry. Whether you are making computer chips or mixing vaccines, just one dust particle can ruin a very expensive batch.

Why Standard Floors Fail in Cleanrooms

Concrete floors release moisture and tiny particles. Epoxy paint can chip. Vinyl tiles have gaps where bacteria can hide. Normal floors are basically dust factories. That is a big problem when you need extremely high cleanliness (ISO Class 3).

Aluminum's Non-Porous Advantage

Here is where aluminum really stands out. Aluminum has no pores. That means no cracks for bacteria to grow in, no soaking up moisture, and no releasing gases. You can clean it with strong chemicals like hydrogen peroxide or bleach, and it will not rust or corrode. Also, aluminum raised floors help clean air flow down through the floor, carrying dirt away. It is like having a floor that helps clean itself.

The Data Center: Airflow is the Most Important Thing

Data centers need two things: electricity and cooling. In fact, cooling uses nearly 40% of a data center's energy bill.

Underfloor Air Distribution (UFAD) Explained Simply

Imagine your server racks are like hot athletes. They need a constant breeze to stay cool. Old-style cooling blows cold air down from the ceiling, but that air mixes with hot air, which wastes energy. UFAD pushes cold air through vented aluminum floor tiles directly into the cold aisles. The hot air rises and goes back to the cooling unit.

How Aluminum Floors Save Money on Cooling

Aluminum is great at letting heat pass through. It does not trap heat like wood or rubber. When you use aluminum raised floors with vented tiles, you create a space of pressurized cold air. The cold air rushes exactly where it is needed — no waste. Some data centers say they save 30% on cooling costs just by switching to aluminum raised floors. That is a lot of money.

Top 5 Unbeatable Benefits of Aluminum Raised Floors

Let's get straight to the point. Here are five reasons why engineers love aluminum raised floors.

1. Corrosion Resistance (Kills Rust)

Ever left a steel tool out in the rain? It rusts fast. Aluminum forms a natural protective layer right away. In cleanrooms where chemicals spill, or data centers where humidity is controlled, rust is a big problem. Aluminum is not bothered by moisture.

2. Strong but Light

Here is the great part: Aluminum raised floors can hold 1,000 to 2,000 lbs per square foot, yet one tile weighs about half of a steel tile. That means cheaper shipping, faster installation, and less weight on the building.

3. Fire Resistant and Safe

Wood-core floors burn. Aluminum does not. Aluminum melts at 1,220°F (660°C), but it does not help a fire spread. It will not catch fire. In a data center, that gives you valuable extra time.

4. Electrostatic Discharge (ESD) Safety

A static shock may annoy you, but it can destroy a server motherboard. Aluminum raised floors are naturally conductive. When properly grounded, they safely remove static electricity right away. No shock. No damage.

5. 100% Recyclable and Sustainable

Green building credits matter. Aluminum can be recycled forever without losing quality. When you remove an old aluminum raised floor, it can become a soda can, then another floor, then an airplane part. No waste at all.

Installation: What Happens on Day One

So, you have bought the system. Now what? Installation is surprisingly fast. A team of four people can usually install 1,000 square feet per day.

First, the concrete floor is checked for moisture. (Aluminum does not mind moisture, but the pedestals work best on a flat surface.) Then, laser levels are set up. The pedestals are glued or screwed to the floor. Aluminum stringers are snapped in place to make the structure stable. Finally, the aluminum tiles are dropped into the grid like puzzle pieces.

Pro tip: Always buy 5-10% extra tiles. You will need to cut some around columns. For data centers, use vented tiles (with 25-50% open area) in the cold aisles.

The best part? There is no drying time, no smell, and no toxic glue. You can walk on the floor as soon as the last tile is in place.

Maintenance Tips to Make Your Floor Last Longer

Here is a secret: Aluminum raised floors need almost no maintenance. Almost.

Vacuum regularly: Dust can collect under the floor. Use a HEPA vacuum once a year.

Check pedestal tightness: Over time, heavy rolling loads (like server racks on wheels) can loosen the pedestal heads. Tighten them every 2 years.

Clean with mild soap: Strong acids (like hydrochloric) can stain aluminum. Use pH-neutral cleaners.

Check vented tiles: Make sure the holes are not blocked with dust.

Now compare that to painting epoxy floors every 3 years or replacing swollen wood tiles. Aluminum is the install-it-and-forget-it solution

Common Myths About Aluminum Floors (Solved!)

Myth #1: "Aluminum is too soft."

Wrong. The aluminum used in raised floors (Alloy 6061-T6) is as strong as mild steel. You can drive a forklift on it.

Myth #2: "It is expensive."

At first? Yes, a bit more. But over 20 years? It is cheaper. No repainting, no rust repairs, no fireproofing chemicals needed.

Myth #3: "It is dangerous because it conducts electricity."

Actually, it is safe because it is grounded. Steel can create sparks. Aluminum safely removes static charge.

Myth #4: "It is noisy to walk on."

Modern aluminum panels have sound-deadening vinyl or rubber inside. You will hear a solid thud, not a hollow echo.

Cost Analysis: Is It Worth the Money?

Let's talk about dollars and sense (pun intended). An aluminum raised floor system usually costs between $15 to $30 per square foot, fully installed. The price depends on the load class and finish. Steel or wood-core systems cost $8 to $15 per square foot.

So why pay almost double? Because the long-term cost tells a different story. Over 15 years:

Steel: You need to replace rusted panels once, around year 8. That adds $10 per square foot.

Wood: You need to replace water-damaged tiles every 5 years. That adds $20 per square foot.

Aluminum: No replacement needed. Just clean it.

Plus, energy savings in a data center can reach $5 per square foot per year. Do the math. The aluminum raised floor pays for itself in less than 3 years. After that, you are saving pure profit.

Conclusion: Building a Strong Foundation for Success

You don't need a crystal ball to see where critical environments are heading. Cleanrooms will need to be even cleaner. Data centers will get hotter as computer chips become more powerful. The floor under your feet is not just a surface — it is a key part of your operation.

Aluminum raised floors offer three great benefits: strength, cleanliness, and long life. They protect your equipment, lower your energy bills, and stop rust and contamination from becoming a problem. Whether you are updating an old server room or building a new cleanroom, do not save money by choosing a cheap floor.

Remember, a chain is only as strong as its weakest part. Do not let that weak part be your floor.

FAQs About Aluminum Raised Floors

Q1: Can aluminum raised floors be used outdoors?

Yes, but with caution. In coastal salt-air environments, use an anodized or powder-coated finish for extra protection.

Q2: How high can the pedestals go?

Typical range is 3 inches to 5 feet. For very high plenums (over 4 feet), heavy-gauge pedestals with bracing are required.

Q3: Do I need stringers?

Not always. For light loads (offices), stringers are optional. For seismic zones or heavy server racks, always use stringers.

Q4: Can I cut aluminum panels on site?

Absolutely. A standard circular saw with a carbide-tipped blade works fine. Just wear eye protection—those chips are sharp!

Q5: Are aluminum raised floors ESD safe for cleanrooms?

Yes, when grounded. Most systems come with conductive vinyl tiles or bare aluminum that connects to the building ground. Resistance is typically < 1 x 10^6 ohms.

Q6: How long do they last?

In a normal indoor environment, aluminum raised floors have a service life of 50+ years. You’ll replace the building before the floor.
