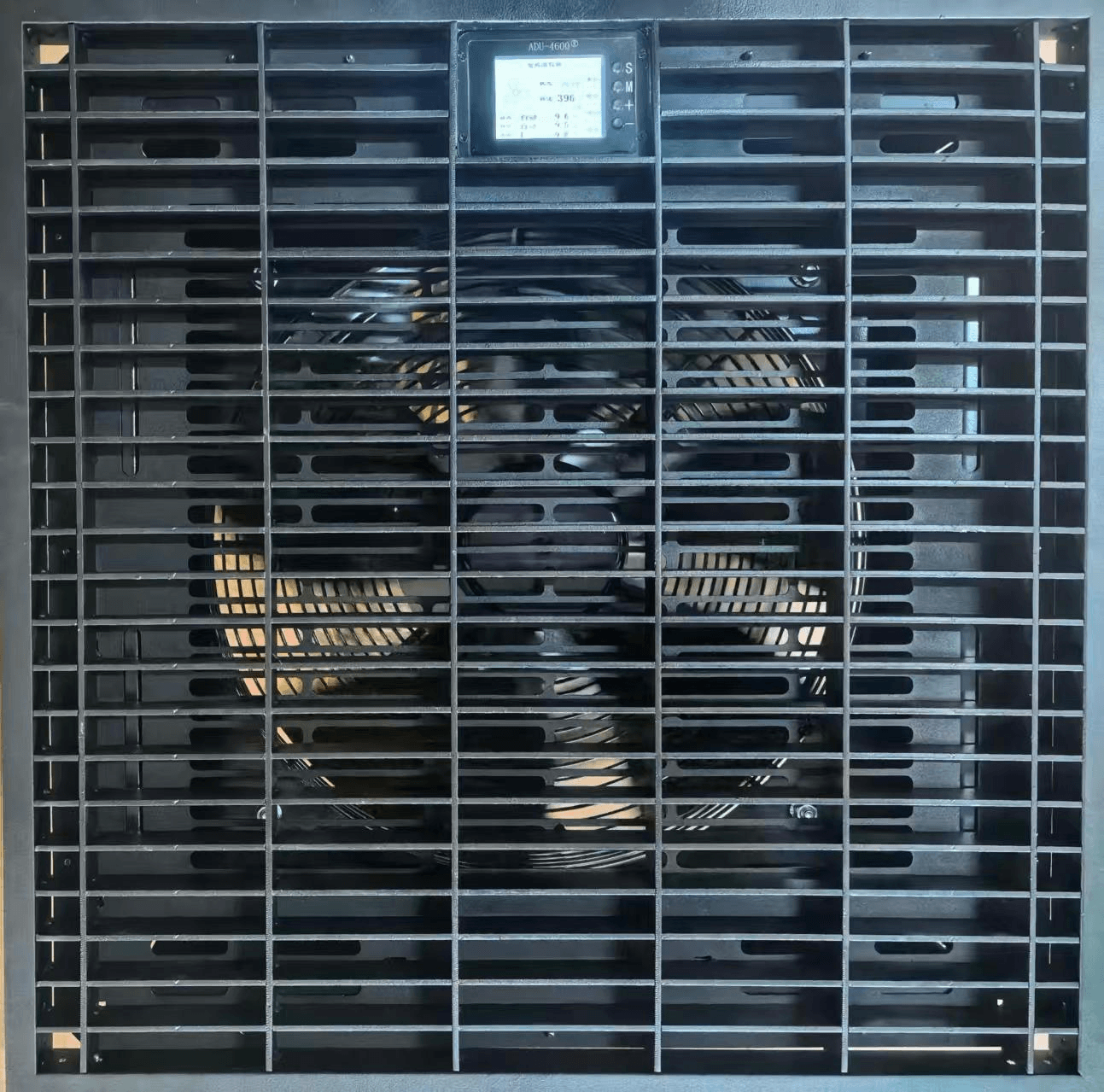

Representative image from the ADU-2600 data sheet; background edited.

ADU2600

SMART AIR SUPPLY UNIT

Targeted airflow for data center hot spots

Dawn ADU2600 (ADU-2600) is a fan-assisted raised-floor unit that combines an airflow grille, an EC fan and temperature control to deliver cooling air where your racks need it.

By adjusting fan speed in response to rack temperature, it helps manage uneven heat loads and local hot spots. The integrated floor design is suitable for new data centers, targeted upgrades and phased expansion.

Inquiry

PDF Download

3600 m³/h

Maximum airflow

EC fan

Stepless airflow control

600 × 600 mm

Floor module footprint

Key Features of ADU2600

Temperature-responsive control

Automatically adjusts fan speed as the monitored temperature changes, with manual operation available when needed.

Focused airflow delivery

Automatically adjusts fan speed as the monitored temperature changes, with manual operation available when needed.

Remote monitoring and control

RS-485 and Modbus support remote status monitoring, parameter adjustment and control of multiple units.

APPLICATIONS

High-density rack areas

Direct additional cooling air to racks with concentrated heat loads and local hot spots.

Existing data center upgrades

Add targeted airflow where current distribution falls short, including remote rack positions and room corners.

New builds & phased expansion

Plan units into a new raised-floor layout or add them as rack density and cooling needs change.

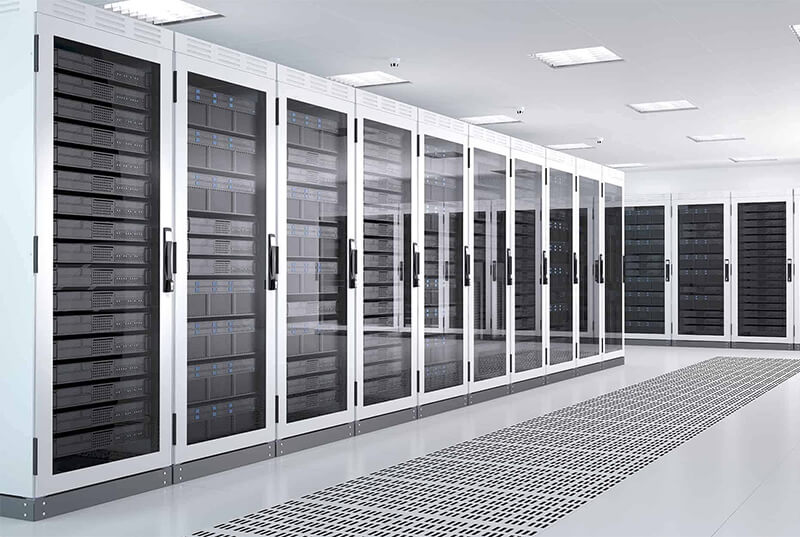

Raised-floor data center application illustration

Planning your installation: allow at least 300 mm installation clearance. Confirm panel fit, power supply, sensor placement and available cooling air with Dawn for your project.

Full specifications

NEED TO TALK? WE'RE HERE FOR YOU.

Tell us about your raised-floor layout and rack cooling needs. Our team can help you plan ADU2600 for your project.

Contact Our Support Team

WE ARE WORKING WITH

ADU2600 Questions & Answers

What does ADU2600 do?

ADU2600 is an air-distribution unit used with the data center’s cooling system. It directs available underfloor cooling air to racks and adjusts airflow in response to temperature.

Can ADU2600 be used in an existing raised floor?

It is suitable for raised-floor retrofit projects, subject to panel fit, power supply and at least 300 mm installation clearance.

How is the airflow controlled?

Temperature sensors and the integrated controller automatically adjust fan speed. Manual operation and RS-485/Modbus communication are also supported.

Product information: Dawn ADU2600 data sheet (PDF). Contact Dawn to confirm the configuration for your project.
