Ulapha: Ikhaya » Imikhiqizo » Yonke Isitezi Sokufinyelela Esiphakanyiswe Ngensimbi » Isitezi Sokufinyelela Esiphakanyiswe Ngensimbi - OA600

Izitezi zokufinyelela eziphakeme zikasimende

OA600 IZISEZI ZOKUFINYELELA EZISISIYA OKUKHUKILEYO

OA600 amaphaneli aphansi okufinyelela aphakeme angamagobolondo ensimbi ahlanganiswe nge-epoxy ehlala isikhathi eside , adizayinelwe amasistimu okubeka phansi asebenza kahle kakhulu . Iphaneli ngayinye iqukethe ishidi lensimbi eyisicaba elingaphezulu elishiselwe eshidini lensimbi elakhekile elingaphansi , elakhiwe ngokunemba ukuze kuqinisekiswe anembe kakhulu , amandla , kanye nomklamo ongasindi . Lawa maphaneli awashi futhi ahlangabezana namazinga e-Dawn njengoba ahlolwe yi CISCA , ahlinzeka ngesixazululo esinokwethenjelwa , esiqinile , nesiphephile sezinhlelo zokusebenza zezentengiselwano, ezobuchwepheshe, nezesikhungo sedatha.

IZINZUZO EZIYINHLOKO ZOKUFINYELELA KWAKUKHUSELEKILE OA600 KWESITIOUS ESIKHUNDLENI

● Isakhiwo sensimbi esigcwele samandla aphakeme nokusebenza komlilo

● Indawo yephaneli ependwe ngogesi ukuze iguge futhi imelane nokugqwala

● Ukunemba kosayizi ophezulu nobude obulungisekayo bokuhlanganiswa okuvumelana nezimo

● I-svstem yokuphatha ikhebula elula yokuthutha nokugcinwa kwendawo yokusebenza kalula

● Umklamo obukeka kahle ongambozwa ngezinto ezihlukahlukene

● Ukusebenza okuhlala isikhathi eside futhi kugaywa kabusha kakhulu ukuze kusimame

Uphenyo

I-PDF Download

IZINCACISO ZOKUSEBENZA KWE- OA600 YESTEEL CEMENTITIOUS UVUKILEKO YOKUFIKELELA NGAPHANSI

Imibandela yokusebenza Yesistimu Yokufinyelela Ephansi Ephakeme iyona ebaluleke kakhulu okufanele icatshangelwe ngoba imelela ukusebenza ekufakweni okuvamile.Izimo zokunquma zephaneli ye-Raised Access Floor efana nomthwalo ogxilile ngokuvamile isetshenziselwa ngokukhethekile amasistimu aphansi.Kodwa-ke, ukuhlola akumeli ukufakwa kwangempela ngenxa yokuthi kwenziwa ngamabhulokhi okuhlola amaphaneli, hhayi ukungaphansi kwesakhiwo sangempela.

Imibandela Yokusebenza Kwesistimu
Uhlobo Lwesistimu		Imithwalo Emile			Imithwalo Eginqikayo
Iphaneli	Usayizi Wephaneli	Ogxilile Umthwalo	Isici Sokuphepha (min.2.0)	Ukulayisha okuphelele	10 Amaphasi	10,000 Amaphasi
FS700	600x600x35mm 610x610x35mm	318kg /700lbs	Dlula	636kg /1400lbs	275kg 600lbs	181kg 400lbs
FS800	600x600x35mm 610x610x35mm	368kg/800lbs	Dlula	736kg/1600lbs	318kg 700lbs	275kg 600lbs
FS1000	600x600x35mm 610x610x35mm	454kg/1000lbs	Dlula	909kg/2000lbs	368kg 800lbs	318kg 700lbs
FS1250	600x600x35mm 610x610x35mm	568kg/1250lbs	Dlula	1136kg/2500lbs	454kg 1000lbs	368kg 800lbs
FS1500	600x600x35mm 610x610x35mm	681kg/1500lbs	Dlula	1363kg/3000lbs	568kg 1250lbs	454kg 1000lbs
FS2000	600x600x35mm 610x610x35mm	909kg/2000lbs	Dlula	1818kg/4000lbs	681kg 1500lbs	568kg 1250lbs
FS2500	600x600x35mm 610x610x35mm	1136kg/2500lbs	Dlula	2272kg/5000lbs	909kg 2000lbs	681kg 1500lbs
FS3000	600x600x35mm 610x610x35mm	1363kg/3000lbs	Dlula	2726kg/6000lbs	1136kg 2500lbs	909kg 2000lbs

*Ukuhlola kwenziwa kusetshenziswa CISCA 's Recommend Test Procedures for Access Floors ngaphandle komthwalo Wokuklama

1. Umthwalo wedizayini Yesitezi Esiphakeme Sokufinyelela uhlolwa kusetshenziswa indlela CISCA yokuhlola Umthwalo Ogxilisiwe kusakhiwo esingaphansi sangempela esikhundleni samabhulokhi ensimbi. Umthwalo wokuklama unqunywa ngokuthatha inani elincane lomthwalo wokugcina ohlukaniswe kabili noma iphuzu lapho umonakalo ongapheli uqala ukwenzeka khona (iphuzu lesivuno).

2. Isici sokuphepha Esisezingeni Eliphakeme Sokufinyelela Esitezi siwumthwalo omningi Wokuklama kuya kumthwalo Owukugcina. Amazinga wamazwe ngamazwe kanye ne-Dawn incoma' i-minium ye-2.

OA600 UKUFINYELELA OKUPHAKANYISIWE OKUPHANSI KANYE NEZINKETHO ZOKUFINYELELA

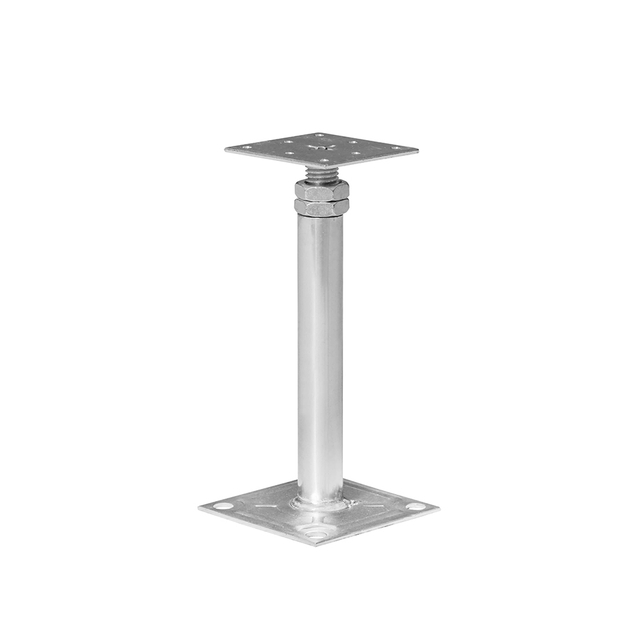

I-Pedestal Yephrofayili Ephansi
I-Aluminium Cross Head Pedestal
Steel Cross Head Pedestal
I-Pedestal Pedestal

INKQUBO YOKUFAKA OA600 KWESITIOUS OKUKHUKILEYO YOKUFIKELELA NGAPHANSI

Isitezi esiqediwe esiphakanyisiwe sokufinyelela sizoqina, singadlidlizi namaphaneli anyakazayo ngaphakathi kwezinga elingu-3mm phezu kwaso sonke isikhala. Iphaneli yaphansi yokufinyelela ephakanyisiwe izosikwa ngokunembile ukuze ingene kuzo zonke izici ezihlala njalo. Wonke amaphaneli azoshintshana ngokuphelele avumele noma yiziphi izinguquko zesikhathi esizayo. Indawo yokufinyelela izogcina lezi zimo ze-original lapho amaphaneli anele esusiwe ukuze kufinyeleleke phansi okuvamile.

UDINGA UKUKHULUMA? SIKHONA NGENXA YAKHO.

Kuningi okufanele kucatshangelwe uma kuziwa eku-odeni indawo yokufinyelela ephakanyisiwe. Sazise ukuthi yini oyifunayo, futhi sizokusiza ukuthi unqume ukuthi yiziphi izinketho zaphansi zokufinyelela ezilungele izidingo zakho.

Xhumana Nethimba Lethu Lokusekela

SISEBENZA NABO

IMIKHIQIZO EHLOBANE

IMIBUZO EVAME UKUBUZWA MAYELANA NE OA600 YESTEEL CEMENTITIOUS UPUKA FUTHI YOKUFINYELELA

Iyini i- OA600 insimbi ephakanyisiwe yokufinyelela yaphansi?

OA600 insimbi ephakanyisiwe yokufinyelela yaphansi iyisistimu yaphansi ephakanyisiwe esebenza kahle eyakhiwe ngamaphaneli ensimbi anogqinsi oluncane luka-0.6 mm . Amaphaneli asekelwa i- understructure under pedestal elungisekayo , okudala indawo efinyeleleka ngaphansi kwesitezi yekhebula, izintambo zikagesi, HVAC amasistimu, nezinye izinsiza zokwakha . Lo mklamo uqinisekisa umthamo oqinile wokulayisha, ukugcinwa kalula, nokuhlanganiswa okuvumelana nezimo , okuwenza ulungele amahhovisi ezentengiselwano, izikhungo zedatha, amagumbi okulawula, nezinsiza zobuchwepheshe..
Yiziphi izinzuzo zokusebenzisa OA600 insimbi ephakanyisiwe yokufinyelela yaphansi?
OA600 insimbi ephakanyiswe ukufinyelela phansi iletha izinzuzo eziningi zokusebenza, okuyenza ifaneleke ezakhiweni zezentengiselwano, izikhungo zedatha, nezimo zobuchwepheshe . Izinzuzo ezibalulekile zifaka:
- Amandla aphezulu nokuqina okuhlala isikhathi eside ngenxa yokwakhiwa kwamaphaneli ensimbi
- Ukumelana nomlilo ukuze kuthuthukiswe ukuphepha nokuhambisana
- Ukusebenza okuhle kwe-acoustic ukunciphisa ukudluliswa komsindo
- Ukusebenza kahle kwe-thermal ukusekela ukusebenza kahle kwe HVAC
- Ukufakwa kalula nokugcinwa , ukonga isikhathi nezindleko
- Ukuvumelana nezimo zesakhiwo , okuvumela ukulungiswa kabusha okusheshayo kokushintsha izidingo zehhovisi noma zemishini
Le nhlanganisela yamandla , ukuphepha, nokuvumelana nezimo kwenza OA600 kube ukukhetha okuthembekile kwezinhlelo zokusebenza zaphansi eziphakeme zesimanje.
Ungakanani umthamo wokulayisha we OA600 insimbi ephakanyisiwe yokufinyelela yaphansi?

Umthamo wokulayisha we OA600 yensimbi ephakanyisiwe yokufinyelela yaphansi incike kusayizi wephaneli, ukujiya kwensimbi, nesikhala sezinyawo . Ngokuvamile, amaphaneli e OA600 angakwazi ukusekela ngokuphephile imithwalo esukela ku-500 kg ukuya ku-1000 kg ngemitha-skwele ngayinye , okuwenza afanelekele amahhovisi ezentengiselwano, izikhungo zedatha, amagumbi okulawula, nezinye izindawo ezinomthwalo omkhulu . Ukuhlola uhlelo oluphelele lwephaneli-ne-pedestal kuqinisekisa ukusebenza okuthembekile ngaphansi kwezimo zangempela zokufakwa.
Ingabe OA600 insimbi ephakanyisiwe yokufinyelela yaphansi ingenziwa ngendlela oyifisayo ukuze ilingane nezidingo ezithile zephrojekthi?

Yebo, OA600 insimbi ephakanyisiwe yokufinyelela yaphansi ingenziwa ngendlela oyifisayo ngokugcwele ukuze ihlangabezane nezimfuneko ezithile zephrojekthi . Izinketho zifaka osayizi bangokwezifiso bephaneli, ukuqedwa kwendawo, nezinsiza ezifana namarempu, izinyathelo, nama-handrails. Lokhu kuvumelana nezimo kuvumela isistimu ukuthi ivumelane nezakhiwo ezihlukile zesakhiwo, izinhlelo zokusebenza ezikhethekile, nezidingo zephrojekthi yesifunda , iqinisekisa ukusebenza okusebenzayo nokuhlanganiswa kobuhle..
Ithini inqubo yokufaka OA600 insimbi ephakanyisiwe yokufinyelela yaphansi?
Inqubo yokufaka { OA600 insimbi ephakanyisiwe yokufinyelela yaphansi ihlanganisa izinyathelo ezimbalwa ezibalulekile:
- Ukulungiswa kwe-subfloor ukuqinisekisa izinga kanye nesisekelo esizinzile
- Ukufakwa kwesistimu yezinyawo ezilungisekayo ukuze kube nobude obufanele nokusekelwa
- Ukubekwa kwamapaneli ensimbi , ukuwahlanganisa ngokuphepha
- Amaphaneli okusika ukuze alingane nezithiyo noma izici zesakhiwo
- Ukufakwa kwezinsiza ezidingekayo , njengamarampu, izitebhisi, noma ama-handrails
- Ukuhlolwa kokugcina nokuhlola ukuze kuqinisekiswe ukuthotshelwa kwezindinganiso nemithethonqubo esebenzayo
Le nqubo ehlelekile iqinisekisa ukufakwa okuphephile, okuhlala isikhathi eside, nokunembayo , okufanelekela amahhovisi ezentengiselwano, izikhungo zedatha, amagumbi okulawula, nezinye izinsiza zobuchwepheshe..
